Tripp Lite

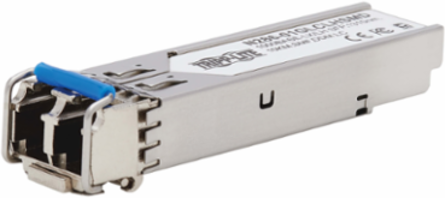

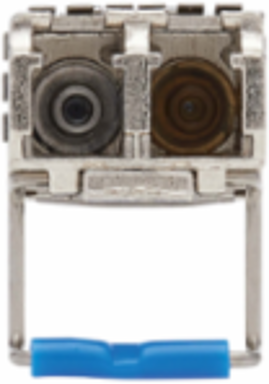

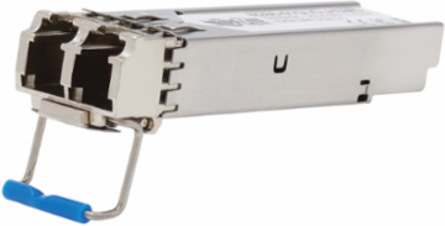

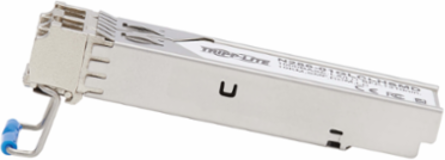

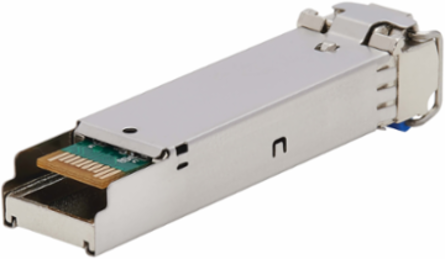

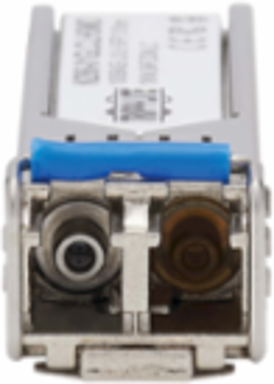

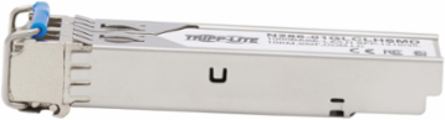

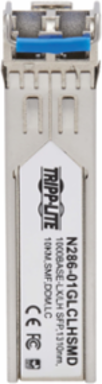

Tripp Lite N286-01GLCLHSMD Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km

Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km
  • MPN: N286-01GLCLHSMD
  • UPC: 037332249289
  • PPN: TRP-N286-01GLCLHSMD

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$98.67/ EA

Description

Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km

Features

  • SFP transceiver module 100% compatible with Cisco’s equivalent module
  • Provides 1 Gbps throughput up to 10 km (6.2 mi.) via singlemode fiber cabling
  • LC duplex female connector supports 1000Base-LX/LH signal at 1310 nm wavelength
  • Hot-swappable interface lets you install and uninstall without shutting down
  • Supports DDM for monitoring temperature and other real-time operating parameters
  • 3-year limited warranty
  • SFP Transceiver Designed for Connection to Your Cisco Network Switch or Server
  • Functionally Equivalent to Cisco GLC-LH-SMD Transceiver Module
  • Hot-Swappable for Installation Without Network Interruption
  • Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring

Specifications

Features & Specifications

Driver Required
No
Brand Compatibility
Cisco
Optical Port
LC
Mode Type
Singlemode
TechnologySinglemode
Wavelength1310nm
Transmission Distance10 km
Multi-Source Agreement (MSA) CompliantYes

Connections

Side A - Connector 1
SFP (MALE)
Side B - Connector 1LC DUPLEX (FEMALE)

Physical

Color
Silver
Unit Weight (lbs.)
0.064
Unit Dimensions (hwd / in.)0.33 x 2.18 x 0.53

Environmental

Operating Temperature Range
32 to 158 F (0 to 70 C)
Relative Humidity
5% to 85% RH, Non-Condensing
Storage Temperature Range-40 to 185°F (-40 to 85 °C)

Overview

UPC Code
037332249289

Special Features

Data Transfer Rate
1Gbps

Warranty

Product Warranty Period (Worldwide)
3-year limited warranty
