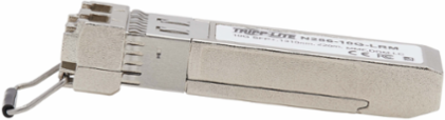

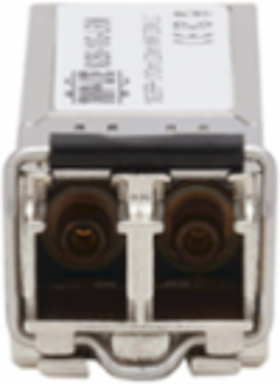

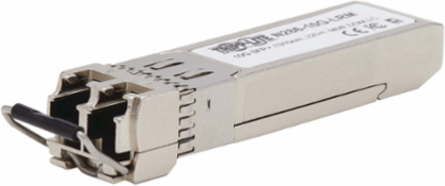

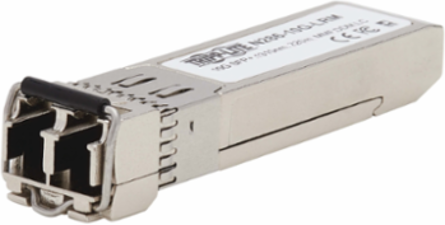

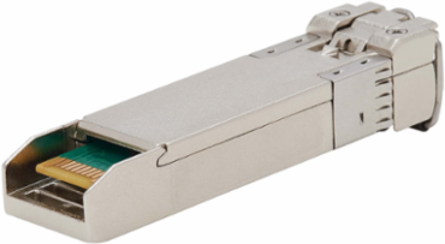

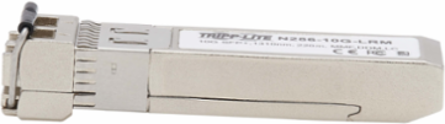

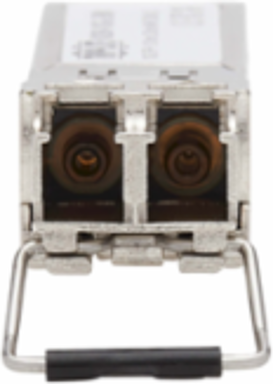

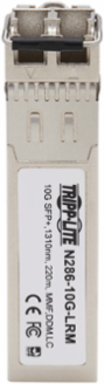

Tripp Lite N286-10G-LRM Cisco-Compatible SFP-10G-LRM SFP+ Transceiver - 10GBase-LRM, DDM, Multimode LC, 1310 nm, 220 m (721 ft.)
Tripp Lite N286-10G-LRM Cisco-Compatible SFP-10G-LRM SFP+ Transceiver - 10GBase-LRM, DDM, Multimode LC, 1310 nm, 220 m (721 ft.)
- MPN: N286-10G-LRM
- UPC: 037332249272
- PPN: TRP-N286-10G-LRM
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$497.66/ EA
Description
Cisco-Compatible SFP-10G-LRM SFP+ Transceiver - 10GBase-LRM, DDM, Multimode LC, 1310 nm, 220 m (721 ft.)
Features
- SFP+ transceiver module 100% compatible with Cisco’s equivalent module
- Provides 10 Gbps throughput up to 220 m (721 ft.) via multimode fiber cabling
- LC duplex female connector supports 10GBase-LRM signal at 1310 nm wavelength
- Hot-swappable interface lets you install and uninstall without shutting down
- Supports DDM for monitoring temperature and other real-time operating parameters
- 3-year limited warranty
- SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
- Functionally Equivalent to Cisco SFP-10G-LRM Transceiver Module
- Hot-Swappable for Installation Without Network Interruption
- Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
Specifications
Features & Specifications
- Driver Required
- No
- Brand Compatibility
- Cisco
- Optical Port
- LC
- Mode Type
- Multimode
TechnologyMultimode
Wavelength1310nm
Transmission Distance220 m
Multi-Source Agreement (MSA) CompliantYes
Connections
- Side A - Connector 1
- SFP+ (MALE)
Side B - Connector 1LC DUPLEX (FEMALE)
Physical
- Color
- Silver
- Unit Weight (lbs.)
- 0.064
Unit Dimensions (hwd / in.)0.49 x 2.3 x 0.55
Environmental
- Operating Temperature Range
- 23 to 185°F (-5 to 85°C)
- Relative Humidity
- 5% to 85% RH, Non-Condensing
Storage Temperature Range-40 to 185°F (-40 to 85°C)
Overview
- UPC Code
- 037332249272
Special Features
- Data Transfer Rate
- 10Gbps
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
Downloads
