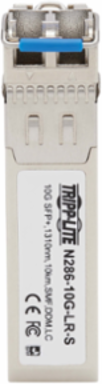

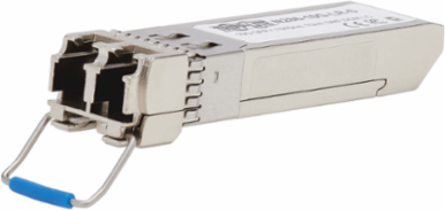

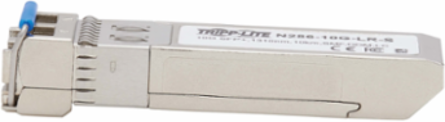

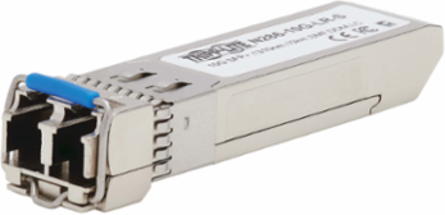

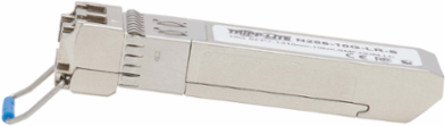

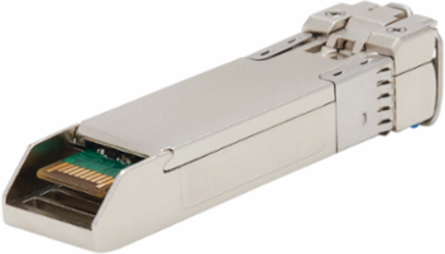

Tripp Lite N286-10G-LR-S Cisco-Compatible SFP+ Transceiver 10GBase-LR, Singlemode LC, 1310 nm, 10 km
Tripp Lite N286-10G-LR-S Cisco-Compatible SFP+ Transceiver 10GBase-LR, Singlemode LC, 1310 nm, 10 km
- MPN: N286-10G-LR-S
- UPC: 037332249241
- PPN: TRP-N286-10G-LR-S
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$473.56/ EA
Features
- SFP+ transceiver module 100% compatible with Cisco’s equivalent module
- Provides 10 Gbps throughput up to 10 km (6.1 mi.) via singlemode fiber cabling

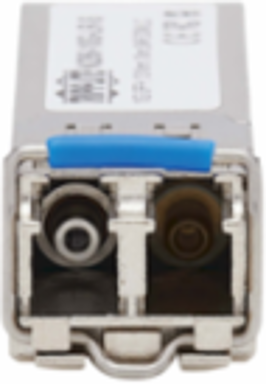

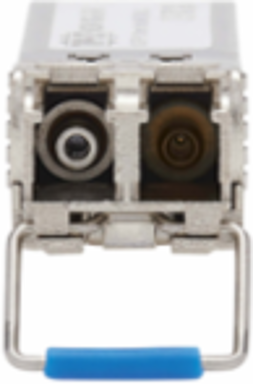

- LC duplex female connector supports 10GBase-LR signal at 1310 nm wavelength
- Hot-swappable interface lets you install and uninstall without shutting down
- Supports DDM for monitoring temperature and other real-time operating parameters
- 3-year limited warranty
- SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
- Functionally Equivalent to Cisco SFP-10G-LR-S Transceiver Module
- Hot-Swappable for Installation Without Network Interruption
- Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
- S-Class Transceiver Highly Recommended for Enterprise Network
Specifications
- Data Transfer Rate
- 10 Gbps
- Wavelength
- 1310 nm
- Operating Temperature Range
- 23 to 185°F (-5 to 85°C)
- Technology
- SFP+/QSPP+/QSFP28; Singlemode
- Unit Dimensions (H x W x D)
- 0.49 x 2.3 x 0.55 in
- Driver Required
- No
- Relative Humidity
- 5% to 85% RH, Non-Condensing
- Color
- Silver
Transmission Distance10 km
Mode TypeSinglemode
Storage Temperature Range-40 to 185°F (-40 to 85°C)
Connector TypeLC DUPLEX female
Unit Weight0.064 lbs
Multi-Source Agreement (MSA) CompliantYes
Brand CompatibilityCisco
