Lutron CAR-20-HDTR-BL-C Claro 20A Tamper Resistant Half-Dimming Receptacle, 125V, Black
- MPN: CAR-20-HDTR-BL-C
- UPC: 027557779586
- PPN: LUT-CAR-20-HDTR-BL-C
- UNSPSC: 39121406
CAD
$66.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

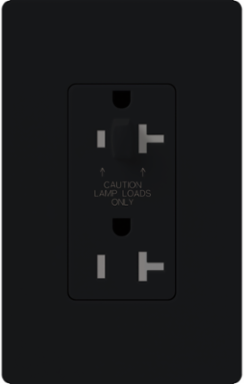

Claro 20A Tamper Resistant Half-Dimming Receptacle, 125V, Black
Features
- Top half for dimming. Projecting nub prevents standard plug from being used. Requires replacement plug for dimming table and floor lamps. Bottom half is a general use receptacle and will fit standard duplex plugs. Tamper resistant shutter mechanism.
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Top half for dimming
- Projecting nub prevents standard plug from being used
- Requires replacement plug for dimming table and floor lamps
- Bottom half is a general use receptacle and will fit standard duplex plugs
- Tamper resistant shutter mechanism
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 20 A |
|---|---|
| Connection | Screw terminal |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| NEMA Rating | 5-20R |
| Number of Wires | 3,4,5 |
| Type | Receptacle for half-dimming use |
| Wattage | 2500 W |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Temperature Rating | 32 to 104 F |
| Color | Black |
| Size | 4.69 x 2.94;119 x 75 in;mm |
| Application | Lighting Control |
|---|---|
| Decorative Color | Black |
| Family Color | Black |
| Number of Poles | 2 |
| Temperature Rating, Maximum | 104 F |
| Voltage Rating | 125 |
| Wire Size | 10 to 12 |
| Material | Plastic/Metal |
| Mounting | Wallbox |
| Aesthetic Finish | Glossy |
| Finish | Gloss |
