Mersen 62011J Class J Fuseholder 31-60 A AC 600 VAC DC 600 VDC, 1-3 Poles, GFPC/Phenolic Body
Mersen 62011J Class J Fuseholder 31-60 A AC 600 VAC DC 600 VDC, 1-3 Poles, GFPC/Phenolic Body
- MPN: 62011J
- PPN: FER-62011J
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$598.73/ EA
Description

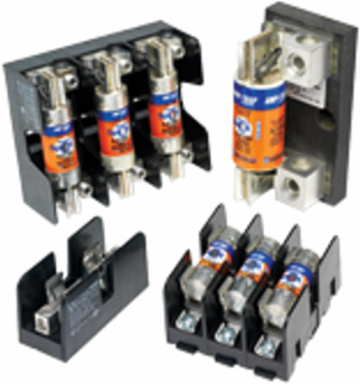

Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips.
Specifications
Product Details
- AC Voltage
- 600 VAC
- DC Voltage
- 600 VDC
- UL Certification
- E52283 IZLT.E52283
- Standards
- UL Listed to standard 4248-8, File E52283 CSA Certified C22.2, Class 6225, File 32169
- CE conformity
- Yes
- Materials Contact
- Tin-plated Copper
- Lead Free
- Yes
- Wiring Range
- #2-14 Al/Cu, #4-14 Cu, 2/0-#12 Cu, 2/0-#6 Al/Cu, (2) 500kcmil-#4 Al/Cu, (2) 500kcmil-#4 Cu, 2/0-#6 Al/Cu, 350kcmil-#6 Al/Cu, 350kcmil-#6 Cu, 1000-250k #2-14 Al/Cu, #4-14 Cu, 2/0-#12 Cu, 2/0-#6 Al/Cu, (2) 500kcmil-#4 Al/Cu, (2) 500kcmil-#4 Cu, 2/0-#6 Al/Cu, 350kcmil-#6 Al/Cu, 350kcmil-#6 Cu, 1000-250kcmil Al/Cu, 1000-250kcmil Cu
- CSA Certification
- 6225-01 032169_0_000
ClassClass J
Number of Poles1, 2, 3
Body MaterialGFPC Phenolic
Ampere Range31-60 A
ROHS CompliantYes
SCCR200 kA
MountingScrew Mount
Connection Terminal TypeBox Screw Box Side-Clip Box In-Line Clip
