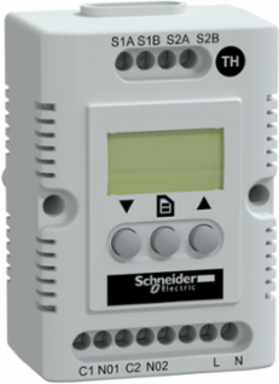

Schneider Electric NSYCCOTH230VID Climasys CC Electronic Thermostat 200-240V -40 to 80 C, 4A Capacity
- MPN: NSYCCOTH230VID
- PPN: SCH-NSYCCOTH230VID
- UNSPSC: 39121321
CAD
$322.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Featuring advanced electronic control, this thermostat is engineered for effective climate management within electrical enclosures. Designed to operate within a temperature range of -40 to 80 C, it ensures optimal performance in extreme conditions, making it suitable for a variety of applications. With a capacity of 4A and a voltage rating of 200-240V, it provides reliable regulation of temperature to protect sensitive equipment from damage due to overheating or excessive cold. Schneider Electric's commitment to quality and innovation is evident in this robust climate control solution, ideal for maintaining the integrity of electrical systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Spain |
|---|
Physical Attributes
| Color | Light gray |
|---|
Complementary Attributes
| Maximum Switching Capacity | 4 A 230 V AC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Information Displayed | temperature in °F, temperature in °C |
| Mounting Mode | clipped, by screws |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0627 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Display Type | OLED screen |
| Flame Retardance | self-extinguishing conforming to UL94 (material V0) |
| Material | PC |
| Product Name | ClimaSys CC |
| Range | ClimaSys |
| Sensor Type | optional NTC external sensor |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | external: 56 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | cross rails, on mounting plate, Spacial upright, 35 mm DIN rail |
| Temperature Setting Range | -40-80 °C, -40-80 °C |
| Local Publishable Date | 2026-03-26 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | 10 terminals 2.5 mm² |
| Hysteresis | 2 K programmed value |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | electronical thermostat |
| Returnability | No |
| Sustainable Packaging | No |
| Height Nominal | external: 85 mm |
| Certificate Agency | UR |
| Customs Code | 9032100060 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103012EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2103012EN |
| Ambient Air Temperature For Operation | -40-80 °C, -40-80 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | electronical thermostat |
|---|
ETIM
| ETIM 8 | EC004587 |
|---|---|
| ETIM 10 | EC004587 |
| ETIM 9 | EC004587 |
|---|
Output Attributes
| Number Of Outputs | 2 ventilation/heating function |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 200...240 V AC |
|---|
