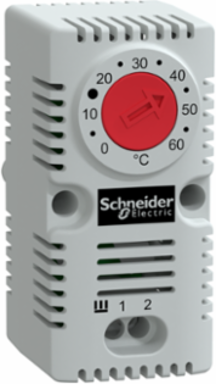

Schneider Electric NSYCCOTHC ClimaSys CC Simple Thermostat 250V, 0-60 C Range, NC Contact
- MPN: NSYCCOTHC
- PPN: SCH-NSYCCOTHC
CAD
$95.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Spain, United States
Physical Attributes
- Color
- Light gray
Complementary Attributes
- Maximum Switching Capacity
- 2 A 120...250 V AC inductive 0.6, 10 A 250 V AC resistive, 15 A 120 V AC resistive, 30 W DC
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Location
- Spacial upright, 35 mm DIN rail, cross rails, on mounting plate
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- NC
- Flame Retardance
- self-extinguishing conforming to UL94 (material V0)
- Information Displayed
- temperature in °C
- Mounting Mode
- clipped
- Product Name
- ClimaSys CC
- Range
- ClimaSys
- Sensor Type
- bimetal
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- external: 68 mm
- Certificate Agency
- UL
- Package Weight(Lbs)
- 66.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Contact Resistance10 mOhm
Electrical Connection4 terminals 2.5 mm²
Hysteresis7 K +/- 0.4K
MaterialPC
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesimple thermostat
ReturnabilityYes
Service Life In Cycles100000 cycles
Temperature Setting Range0-60 °C
Pep CodeENVPEP2103012EN
Width Nominalexternal: 33 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2103012EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-20-80 °C, -20-80 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Silicon FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2103012EN
General Attributes
- Product Or Component Type
- simple thermostat
ETIM
- ETIM 8
- EC004587
ETIM 9EC004587
Output Attributes
- Number Of Outputs
- 1 heating function
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 240 V
