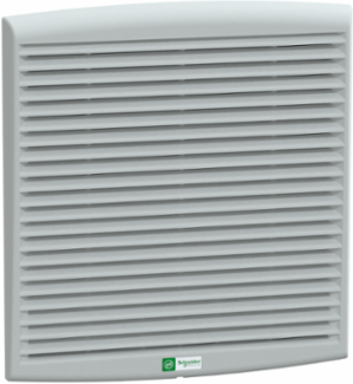

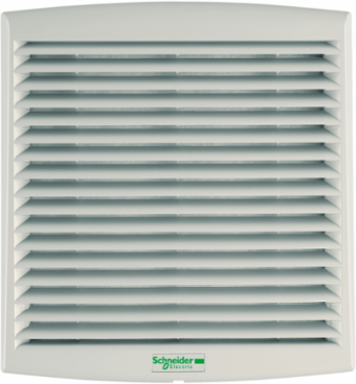

Schneider Electric NSYCVF560M115PF ClimaSys forced vent. IP54, 560m3/h, 115V, with outlet grille and filter G2

ClimaSys forced vent. IP54, 560m3/h, 115V, with outlet grille and filter G2
  • MPN: NSYCVF560M115PF
  • PPN: SCH-NSYCVF560M115PF

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$624.40/ EA

Description

ClimaSys forced vent. IP54, 560m3/h, 115V, with outlet grille and filter G2

Specifications

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP110717EN
Eu Rohs Directive
Compliant with Exemptions
Circularity ProfileENVEOLI1107017EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Connections - Terminals
terminal block
Cut-Out Dimensions
291 x 291 mm
Width
external 316 mm
Power Range
65 W 50 Hz || 83 W 60 Hz
Ip Degree Of Protection
IP54
Colour
outlet grille grey RAL 7035)
Device Composition
1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template
Bearing Type
ball
Depth
external 161 mm
Ambient Air Temperature For Operation-15-60 °C
Ambient Air Temperature For Storage-40-70 °C
Heightexternal 336 mm
Materialoutlet grille injected thermoplastic (ASA PC)
Condition Of Useoutside temperature must be 5 °C lower than inside temperature || overfrequent filter replacement should be avoided || flow rates depends on the work point, see ProClima software || filter must be cleaned and replaced regularly || surrounding environment must be relatively clean
Maximum Pressure140 Pa flow rate 0 m³/h
[In] Rated Current0.6-0.6 A 50 Hz || 0.72-0.72 A 60 Hz
Net Weight3.2 kg
Noise Level59-59 dB

Overview

Lead Time
Usually Ships within 4 Weeks

Specifications

Input Voltage
115 V 50/60 Hz
Air Flow
free flow rate with standard filter: 562 m3/h at 50 Hz || free flow rate with standard filter: 586 m3/h at 60 Hz
Product Or Component Type
fan
Range
ClimaSys
[Us] Rated Supply Voltage103...122 V
Type Of Ventilation Filterstandard
Product NameClimaSys CV
