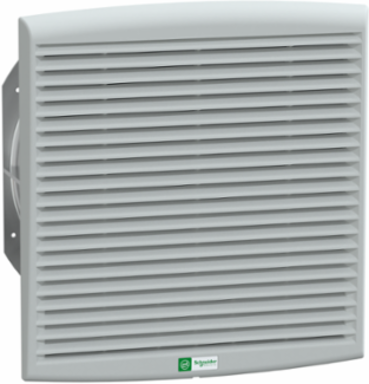

Schneider Electric NSYCVF850M230PF ClimaSys Ventilator 850 m3/h IP54 230V with Grille & G2 Filter

MPN: NSYCVF850M230PF
PPN: SCH-NSYCVF850M230PF
UNSPSC: 39121321

$864.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 150W 50 Hz, 195W 60 Hz. Free flow rate with standard filter of 803 m3/h at 50 Hz and 838 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Features

Reliable and efficient ventilation fan for optimal cooling.
Injected thermoplastic (ASA PC) construction for durability.
Ball bearing type with a maximum pressure of 170 Pa.
Power range of 150 W 50 Hz and 195 W 60 Hz.
Free flow rate of 838 m3/h at 50 Hz and 803 m3/h at 60 Hz.
Anti-insect filter included for added convenience.
Suitable for ambient air temperatures ranging from -15 to 60°C.
Noise level of 75-76 dB for quiet operation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	4386 g

Physical Attributes

Color	outlet grille Gray RAL 7035)

Complementary Attributes

Line Rated Current	0.65-0.65 A 50 Hz0.85-0.85 A 60 Hz
Us Rated Supply Voltage	207...244 V

Maximum Pressure	170 Pa flow rate 0 m³/h

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Condition Of Use	outside temperature must be 5 °C lower than inside temperature, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean
Carbon Footprint Of The Distribution Phase A4	8.69223415410024, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.48743297643440714, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	9 029 kg CO2 eq., 9028.97867952706
Local Publishable Date	2026-07-15
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1107017EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bearing Type	ball
Material	outlet grille injected thermoplastic (ASA PC)
Power Range	150 W 50 Hz195 W 60 Hz
Product Name	ClimaSys CV
Range	ClimaSys
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	9 073 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	external: 336 mm
Nbr. Of Units In Pkg.	1
Cut Out Dimensions	291 x 291 mm
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	17
Recyclability Potential In %	64

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 axial motor, 2 protective grille on the front and rear surfaces1 filter front of axial motor1 outlet grille front, 1 cut-out template
Carbon Footprint Of The End Of Life Phase C1 To C4	7 kg CO2 eq., 6.541717553544786
Carbon Footprint Of The Manufacturing Phase A1 To A3	28 kg CO2 eq., 28.483398357049673
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Noise Level	75-76 dB
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	fan
Returnability	No
Sustainable Packaging	No
Type Of Ventilation Filter	standard
Connections Terminals	terminal block
Data Source	extrapolated product
Width Nominal	external: 316 mm
Customs Code	8414596590
Silicone Free	Yes
Functional Unit Description	"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	22338

Environment Attributes Main

Ambient Air Temperature For Operation	-15-60 °C, -15-60 °C
Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Air Flow	free flow rate with standard filter: 838 m3/h at 50 Hzfree flow rate with standard filter: 803 m3/h at 60 Hz
Environmental Disclosure	ENVPEP110717EN
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP110717EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	9073.183462568188
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0008-ed3-EN-2023 10 19
