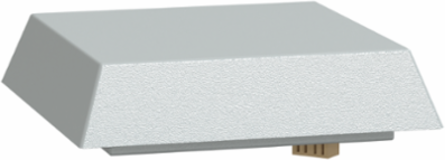

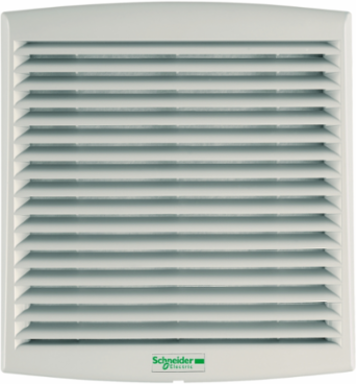

Schneider Electric NSYCVF570M115MF ClimaSys Roof Ventilation System 570 m3/h 115V G2 Filter IP54
- MPN: NSYCVF570M115MF
- PPN: SCH-NSYCVF570M115MF
CAD
$785.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The ClimaSys Roof Ventilation System from Schneider Electric is engineered to enhance air circulation with an impressive airflow capacity of 570 m3/h, making it an ideal choice for effective roof ventilation in various settings. With a robust 115V power supply and an IP54 rating, this system ensures reliable operation in diverse environmental conditions while providing a layer of protection against dust and moisture. Designed for efficiency and durability, the G2 filter contributes to maintaining air quality, making this system a valuable addition for those seeking optimized ventilation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, Italy
Physical Attributes
- Color
- hood Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 hood top of enclosure, 1 fan, 1 fixing elements
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 9 kg CO2 eq., 9.18167196981799
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 40 kg CO2 eq., 39.97806664067437
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1107017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Noise Level
- 64-64 dB
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- top hood with fan
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Ventilation Filter
- G2
- Pep Code
- ENVPEP110717EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 17
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 64
- Width Nominal
- external: 340 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]12.20004410684931, 12 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.6841398547492499, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 116 kg CO2 eq., 5116.421251732001
Local Publishable Date2025-09-16
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Materialhood steel
Power Range85 W
Product NameClimaSys CV
RangeClimaSys
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint5 178 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit Description"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh12658.2
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 96 mm
Cut-out Dimensions228 x 228 mm
Package Weight(Lbs)6.156 kg
Warranty (In Months)18
Customs Code8414596590
Environment Attributes Main
- Air Flow
- with outlet grille cut-out 291 x 291 mm: 350 m3/h, free flow rate: 570 m3/h at 50 Hz
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1107017EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Take BackNo
China Rohs RegulationX
Carbon Footprint5178.465174304092
Environmental DisclosureENVPEP110717EN
Ip Degree Of ProtectionIP54
Packaging Without Single Use PlasticNo
Pep CodeENVPEP110717EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- top hood with fan
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- G2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 115 V 50/60 Hz
