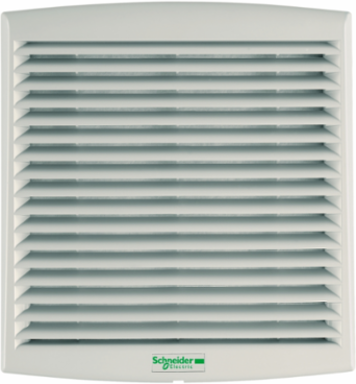

Schneider Electric NSYCVF575M230MF ClimaSys CV Forced Ventilator, 575 m3/h, 230V, IP54, G2 Filter
- MPN: NSYCVF575M230MF
- PPN: SCH-NSYCVF575M230MF
CAD
$476.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

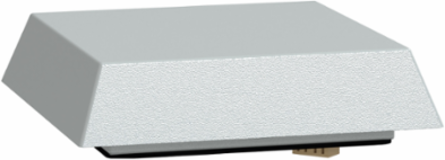

ClimaSys CV forced ventilator. Top hood with fan. 230 V 50Hz or 60 Hz. 85W 50 Hz, 85W 60 Hz. Free flow rate with standard filter of 573 m3/h at 50 Hz and 350 m3/h at 60 Hz. 96 x 340 x 340 mm. Cut-out dimensions of 228 x 228 mm. Made in Hood steel Grey RAL 7035. Protection IP54.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, Italy
Physical Attributes
- Color
- hood Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 hood top of enclosure, 1 fan, 1 fixing elements
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 9 kg CO2 eq., 9.047436999499014
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 39 kg CO2 eq., 39.39359198218498
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Material
- hood steel
- Power Range
- 85 W
- Product Name
- ClimaSys CV
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 5 178 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 12658.2
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- external: 96 mm
- Cut-out Dimensions
- 228 x 228 mm
- Package Weight(Lbs)
- 6.066 kg
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]12.021680888912918, 12 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.6741378100891732, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 116 kg CO2 eq., 5116.421251732001
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1107017EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Noise Level64-64 dB
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typetop hood with fan
ReturnabilityNo
Sustainable PackagingNo
Type Of Ventilation FilterG2
Pep CodeENVPEP110717EN
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y17
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %64
Width Nominalexternal: 340 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- Air Flow
- with outlet grille cut-out 291 x 291 mm: 350 m3/h, free flow rate: 575 m3/h at 50 Hz
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 5177.558099412688
- Environmental Disclosure
- ENVPEP110717EN
- Ip Degree Of Protection
- IP54
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP110717EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
China Rohs RegulationX
Silicon FreeYes
Circularity ProfileENVEOLI1107017EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- top hood with fan
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- G2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 230 V 50/60 Hz
