ABB 1SVR550855R9400 Liquid Level Relay 24V AC, 1 n/o Contact, 0-100 kOhm Sensitivity
ABB 1SVR550855R9400 Liquid Level Relay 24V AC, 1 n/o Contact, 0-100 kOhm Sensitivity
- MPN: 1SVR550855R9400
- PPN: ABB-1SVR550855R9400
- UNSPSC: 39122331
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$165.22/ EA
Description

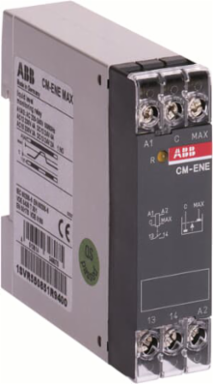

The CM-ENE MAX belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 24 V AC and has a 1 n/o output contact. It monitors liquid levels of conductive fluids and protects tanks against overflow. The output relay works according to the closed-circuit principle. The sensitivity is 0-100 kOhm fixed. The device offers screw connection terminals.
Specifications
Dimensions
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 78.5 mm
Product Net Height78 mm
Product Net Weight0.106 kg
Technical
- Function
- Filling monitoring
- Number of Electrodes
- 2
- Rated Control Supply Voltage (Us)
- 24 V AC
- Output
- 1 n/o contact
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Rated Impulse Withstand Voltage (Uimp)
- Measuring Circuit / Output Circuit 4 kVSupply Circuit / Measuring Circuit 4 kVSupply Circuit / Output Circuit 4 kV
- Degree of Protection
- Housing IP50Terminals IP20
- Connecting Capacity
- Flexible with Ferrule 2x 0.75 ... 1.5 mm²Flexible 2x 1 ... 1.5 mm²Rigid 2x 0.75 ... 1.5 mm²
- Wire Stripping Length
- 10 mm
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Sub-FunctionOverflow protection
Measuring Range0 ... 100 kΩ
Rated Frequency (f)Supply Circuit 50/60 Hz
Terminal TypeScrew Terminals
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Insulation Voltage (Ui)Measuring Circuit / Output Circuit 250 VSupply Circuit / Measuring Circuit 250 VSupply Circuit / Output Circuit 250 V
Short-Circuit Protective DevicesOutput Circuit NO - F Type Fuses 10 A
Tightening Torque0.6 ... 0.8 N·m
Mounting Position1 ... 6
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Classifications
- Object Classification Code
- B
- eClass
- V11.0 : 27371813
- E-Number (Sweden)
- 3860806
ETIM 9EC001447 - (Fill) level monitoring relay
E-Number (Finland)2712851
Environmental
- Ambient Air Temperature
- Operation -20 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible with Ferrule 2x 18-16 AWGFlexible 2x 18-16 AWGRigid 2x 18-16 AWG
Contact Rating UL/CSAB300
Tightening Torque UL/CSA7.08 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
