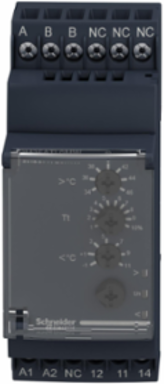

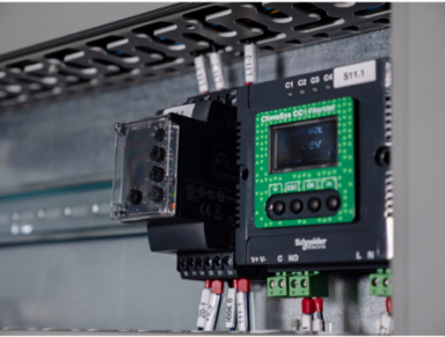

Level Control Relay, 5A, 24-240V AC/DC, 35mm Width
Schneider Electric

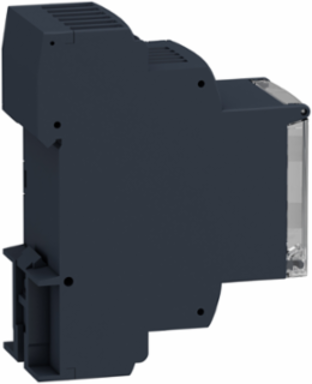

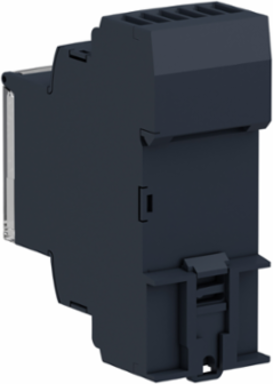

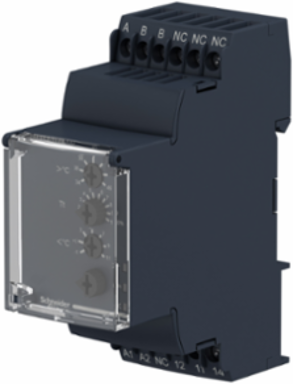

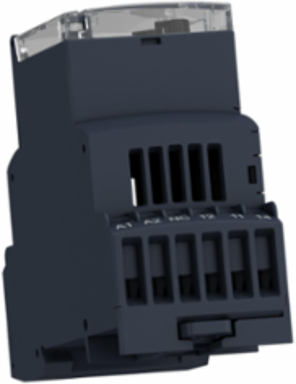

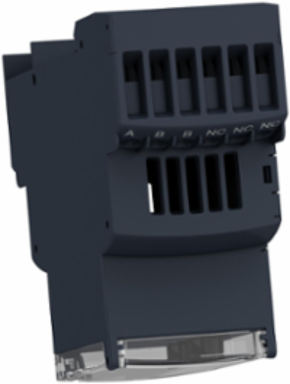

Schneider Electric RM35LV14MW Level Control Relay, 5A, 24-240V AC/DC, 35mm Width

  • MPN: RM35LV14MW
  • PPN: SCH-RM35LV14MW
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $170.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This Harmony RM35-LV relay allows monitoring of level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia

    Complementary Attributes

    Control Circuit Voltage Limits
    - 15 % + 10 % Un, - 15 % + 10 % Un
    Maximum Power Consumption In Va
    5 VA AC
    Maximum Supply Current For Sensors
    40 mA
    Maximum Switching Voltage
    250 V AC/DC
    Line Rated Current5 A
    Maximum Power Consumption In W1.5 W DC
    Maximum Switching Current5 A AC/DC
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Dielectric Test Voltage
    2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
    Local Signalling
    LED (yellow) for relay ONLED (green) for power ON, LED (yellow) for timer ON
    Measurement Accuracy
    +/- 10 % of the full scale value, +/- 20 % for the HS range, +/- 10 % of the full scale value, +/- 20 % for the HS range
    Repeat Accuracy
    +/- 2 % time delay, +/- 2 % time delay+/- 2 % time delay, +/- 2 % time delay
    Safety Reliability Data
    B10d = 170000, MTTFd = 182.6 years
    Certificate Agency
    GOST, CSA, UL, GL, C-tick
    Connections - Terminals
    screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.24968448225712625, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    9 kg CO2 eq., 8.955836242001162
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1601004EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1918
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RM3
    Control Type
    without test button
    Electromagnetic Compatibility
    emission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Housing Material
    polycarbonate
    Measurement Error
    0.5 %/°C with temperature variation
    Mounting Support
    35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage Category
    III conforming to IEC 60664-1
    Product Or Component Type
    level control relay
    Relay Monitored Parameters
    detection by discrete sensors
    Relay Type
    level control relay
    Sensitivity Adjustment
    5-100 %
    Supply Voltage Limits
    20.4-264 V AC/DC
    Switching Capacity In Va
    1250 VA
    Time Delay Type
    adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
    Pep Code
    ENVPEP1601004EN
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27

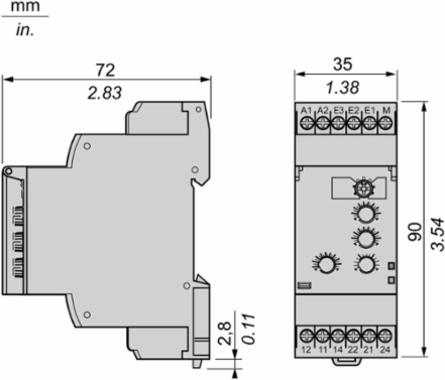

    Width Nominal
    35 mm
    [Ui] Rated Insulation Voltage
    250 V IEC 60664-1
    Run-up Delay At Power-up
    0.5 s
    Package Weight(Lbs)
    133 g
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    50.262
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
    0.471
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    211.02
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    211.02
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
    MarkingCE : EMC 89/336/EEC, CE : 73/23/EEC
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Reset Time1000 ms, 4000 ms
    Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
    Carbon Footprint Of The Distribution Phase [A4]0.017391935718440953, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.043154399360093076
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]50 kg CO2 eq., 50.262
    Local Publishable Date2026-01-12
    Stocking FlagY
    Use Carbon Footprint50.262
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN

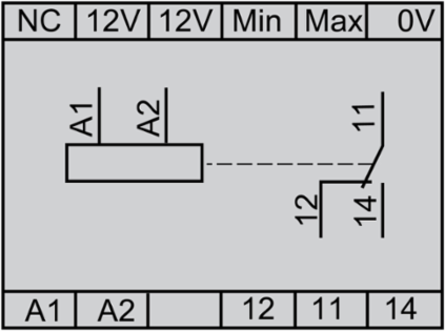

    Contacts Type And Composition2 C/O
    Electrical Durability100000 cycles
    Functionalitydiscrete sensor detection
    Immunity To Microbreaks100 ms DC90 ms AC
    Mechanical Durability30000000 cycles
    Operating Positionany position without derating
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility

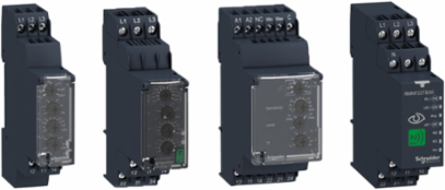

    Range Of ProductHarmony Control Relays
    Relay NameRM35L
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingYes
    Tightening Torque0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint60 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionRM35 relay used to measure and monitor the abnormal operating&amp; 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %8
    [Uc] Control Circuit Voltage24...240 V
    [Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz, non self-powered
    Nbr. Of Units In Pkg.1
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]50.211
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1103.205
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1314.225
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1103.205
    Customs Code8536490075

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    -20-50 °C-20-50 °C
    Environmental Disclosure
    ENVPEP1601004EN
    Ip Degree Of Protection
    IP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint59.52806705933682
    Circularity ProfileENVEOLI1601004EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1601004EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    level control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8
    EC001447
    ETIM 9EC001447

    Output Attributes

    Nominal Output Current
    5 A
    Output Contacts1 C/O

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
