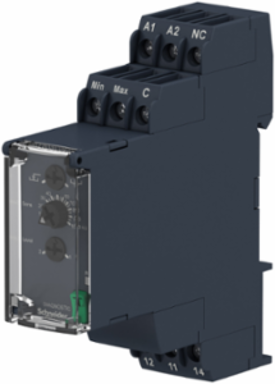

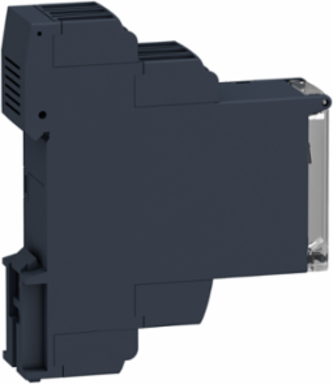

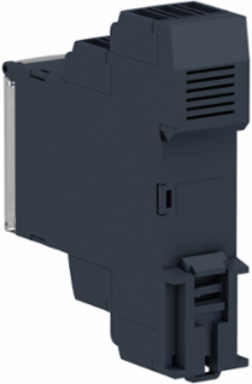

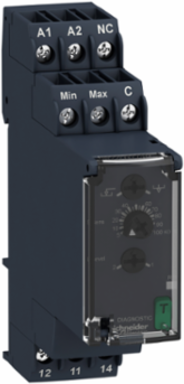

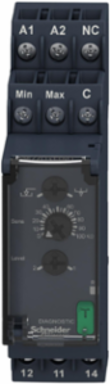

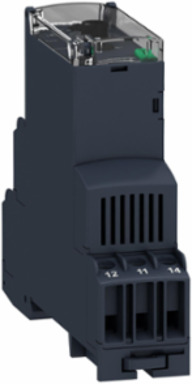

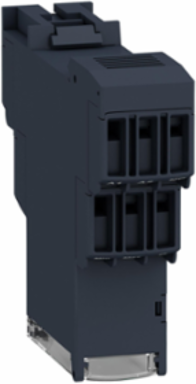

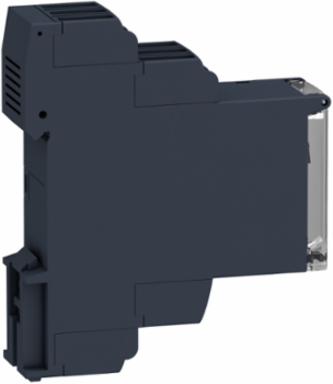

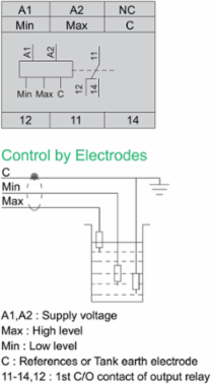

Schneider Electric RM22LG11MT Harmony Level Control Relay, 8A, 1 C/O, 380-415V AC/DC, 22.5mm Width
- MPN: RM22LG11MT
- PPN: SCH-RM22LG11MT
CAD
$146.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore
Complementary Attributes
- Line Rated Current
- 8 A
- Maximum Electrode Current
- 1 mA
- Maximum Supply Current For Sensors
- 1 mA
- Maximum Switching Voltage
- 250 V AC
Maximum Cable Distance Between Devices100 m probe and delay
Maximum Electrode Voltage12 V AC
Maximum Switching Current8 A AC
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11conducted and radiated emissions class B conforming to CISPR 22
- Repeat Accuracy
- +/- 2 % time delay, +/- 2 % time delay+/- 2 % time delay, +/- 2 % time delay
- Utilisation Category
- AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
- Certificate Agency
- CSA, GL, RCM, UL, EAC, CE, CCC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08404034578198688, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0007780362407013479
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 41 kg CO2 eq., 40.75904111642341
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506066EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RM22
- Contacts Type And Composition
- 1 C/O
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Functionality
- resistive probe detection
- Immunity To Microbreaks
- 100 ms DC90 ms AC
- Measurement Range
- 5...100 kOhm
- Mounting Position
- any position
- Overvoltage Category
- III conforming to IEC 60664-1
- Product Or Component Type
- level control relay
- Relay Monitored Parameters
- detection by resistive probes
- Relay Type
- level control relay
- Sensitivity Adjustment
- 5-100 %
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
- Supply Voltage Limits
- 323-456.5 V AC
- Switching Capacity In Va
- 2000 VA
- Time Delay Type
- without
- Pep Code
- ENVPEP2506066EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

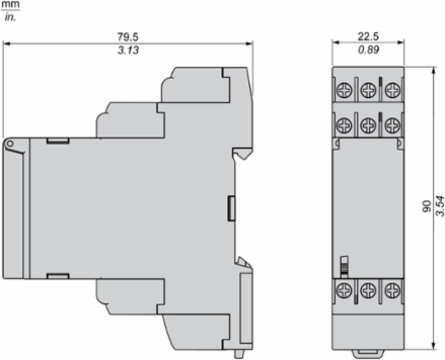

- Width Nominal
- 22.5 mm
- [Us] Rated Supply Voltage
- 380...415 V AC/DC 50/60 Hz, non self-powered
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490050
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Measurement Error< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation0.05 %/°C with temperature variation
Safety Reliability DataMTTFd = 125.5 years, B10d = 120000
Vibration Resistance0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Connections - Terminalsscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.28911561650690104, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.4872131233900405
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Control Typewith test button
Electrical Durability100000 cycles
Housing Materialpolycarbonate
Insulationbetween supply and measurement
Mechanical Durability10000000 cycles
Mounting Support35 mm DIN rail conforming to IEC 60715
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Control Relays
Relay NameRM22L
ReturnabilityYes
Sensitivity Scale5...100 kOhm St (Standard Sensitivity)
Software Versionv6.2.5-6
Sustainable PackagingYes
Tightening Torque0.6-1 N.m IEC 60947-1
Total Lifecycle Carbon Footprint44 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 80% use rate.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %18
[Uc] Control Circuit Voltage380...415 V
Run-up Delay At Power-up0.6 s
Package Weight(Lbs)107.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2506066EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2506066EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint43.62018823834304
Environmental DisclosureENVPEP2506066EN
Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
Packaging Without Single Use PlasticYes
Relative Humidity93-97 % 25-55 °C IEC 60068-2-30
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- level control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001447
ETIM 9EC001447
Output Attributes
- Nominal Output Current
- 8 A
Output Contacts2 C/O
