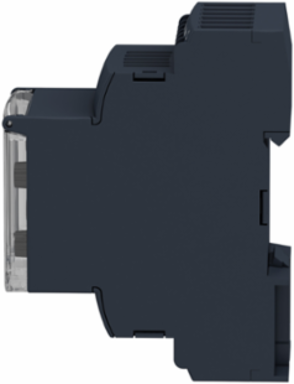

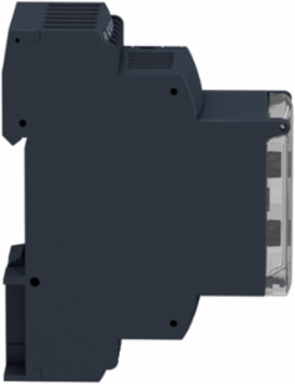

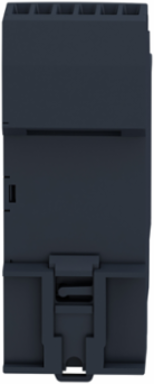

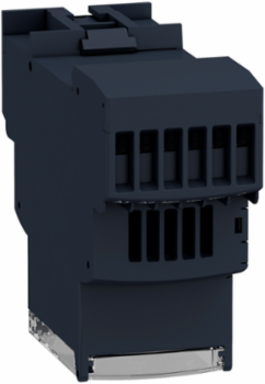

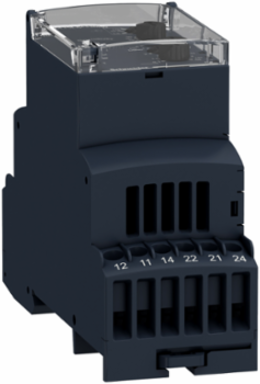

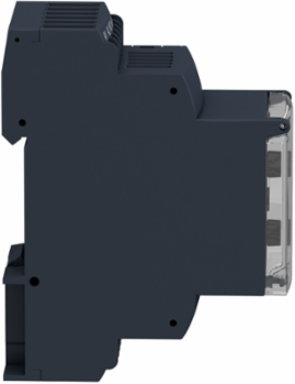

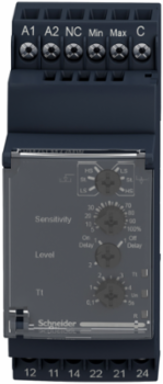

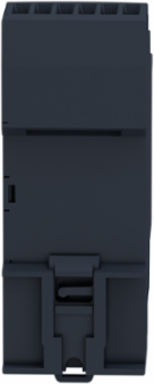

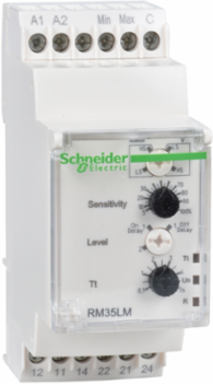

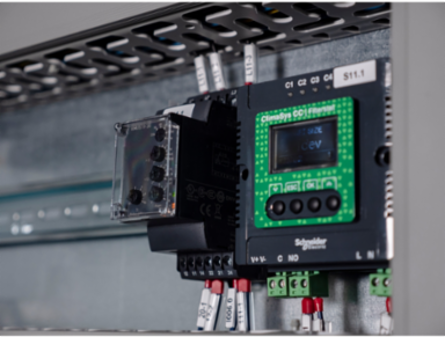

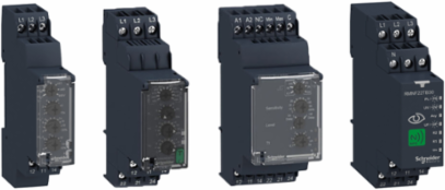

Schneider Electric RM35LM33MW Harmony Level Control Relay, 5A, 2 CO, 24-240V AC/DC, 35mm Width
- MPN: RM35LM33MW
- PPN: SCH-RM35LM33MW
CAD
$145.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RM35-LM relay allows monitoring of level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Complementary Attributes
- Control Circuit Voltage Limits
- - 15 % + 10 % Un, - 15 % + 10 % Un
- Maximum Cable Distance Between Devices
- 100 m
- Maximum Power Consumption In W
- 1.5 W DC
- Maximum Switching Current
- 5 A AC/DC
- Minimum Switching Current
- 10 mA 5 V DC
Line Rated Current5 A
Maximum Power Consumption In Va5 VA AC
Maximum Supply Current For Sensors1 mA
Maximum Switching Voltage250 V AC/DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
- Local Signalling
- LED (yellow) for relay ONLED (green) for power ON, LED (yellow) for timer ON
- Measurement Accuracy
- +/- 10 % of the full scale value, +/- 20 % for the HS range, +/- 10 % of the full scale value, +/- 20 % for the HS range
- Operating Rate
- <= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
- Safety Reliability Data
- B10d = 170000, MTTFd = 182.6 years
- Certificate Agency
- CSA, GL, UL, C-tick, GOST
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.25817, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.2602
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Use Carbon Footprint
- 33.508
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N

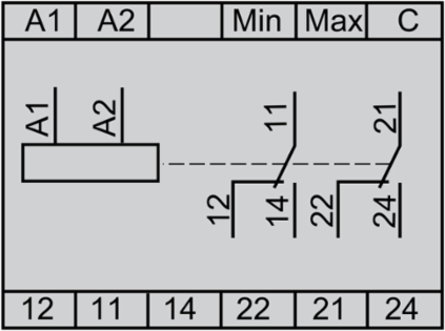

- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles
- Functionality
- resistive probe detection
- Immunity To Microbreaks
- 100 ms DC90 ms AC
- Mechanical Durability
- 30000000 cycles
- Operating Position
- any position without derating
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Control Relays
- Relay Name
- RM35L
- Reset Time
- 1750 ms
- Sensitivity Adjustment
- 5-100 %
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 43 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RM35 relay used to measure and monitor the abnormal operating& 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27

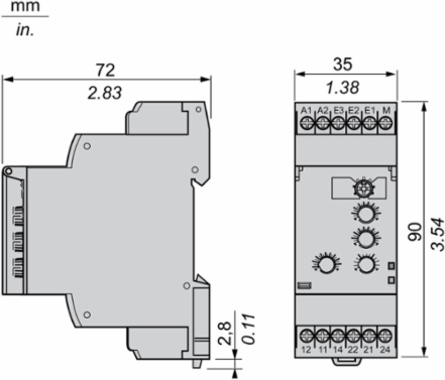

- Width Nominal
- 35 mm
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1
- Run-up Delay At Power-up
- 0.6 s
- Package Weight(Lbs)
- 134.000 g
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 33.474
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 33.508
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 111.66
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 2.5281
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 225.47
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 60.956
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 12.703
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 32.569
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 2.619
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 0.314
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2.14
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 876.15
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.397
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 140.68
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2.14
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 109.52
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 2.5281
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3.324
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 2.0055
- Water Use (M3 Eq) End Of Life [C1-c4]
- 30.576
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
MarkingCE : 73/23/EEC, CE : EMC 89/336/EEC
Measurement Range0.25...1000 kOhm, 250 Ohm...1 MOhm
Repeat Accuracy+/- 2 % time delay, +/- 2 % time delay+/- 2 % time delay, +/- 2 % time delay
Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
Carbon Footprint Of The Distribution Phase [A4]0.017983, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.044621
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]34 kg CO2 eq., 33.508
Local Publishable Date2026-01-12
Stocking FlagN
Manufacturing Carbon Footprint9.2602
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1601004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRM3
Control Typewithout test button
Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Housing Materialpolycarbonate
Measurement Error0.5 %/°C with temperature variation
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage CategoryIII conforming to IEC 60664-1
Product Or Component Typelevel control relay
Relay Monitored Parametersdetection by resistive probes
Relay Typelevel control relay
ReturnabilityYes
Sensitivity Scale0.25...5 kOhm LS (Low Sensitivity)5...100 kOhm St (Standard Sensitivity)50...1000 kOhm HS (High Sensitivity)
Supply Voltage Limits20.4-264 V AC/DC
Switching Capacity In Va1250 VA
Time Delay Typeadjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
Pep CodeENVPEP1601004EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage24...240 V
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz, non self-powered
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]9.2436
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]9.2602
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle850.3731
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]735.47
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-1.209
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]422.46
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-1.1756
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]0.4981
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]32.608
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]5.053
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle2.14
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]115.46
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]2.6684
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]3.7934
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.14
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle848.2331
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]735.47
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.209
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]140.68
Water Use (M3 Eq) Operational Energy Use [B6]1.2403
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-50 °C-20-50 °C
- Environmental Disclosure
- ENVPEP1601004EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminals)IP30 IEC 60529 casing)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint43.088974
Circularity ProfileENVEOLI1601004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1601004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- level control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001447
ETIM 9EC001447
Output Attributes
- Nominal Output Current
- 5 A
Output Contacts2 C/O
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
