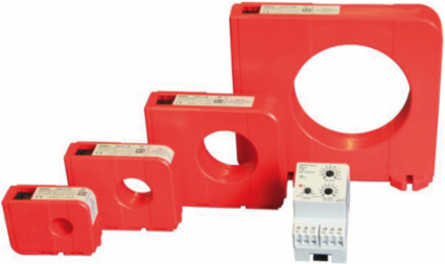

Weidmuller 2603440000 CMA-RCM-DACT-60
- MPN: 2603440000
- PPN: WDM-2603440000
CAD
$558.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Primary current: 25 A, Round conductor: 60.00 mm
Documentation & Downloads
Specifications
Dimensions Of Live Conductors
| Round conductor | 60 mm |
|---|
Electrical Attributes
| Primary current | 25 A |
|---|---|
| Secondary current, min. | 0.042 A |
| Secondary current | 0....41. 7 mA |
|---|---|
| Tolerance class | 1 |
Approvals
| ROHS | Conform |
|---|

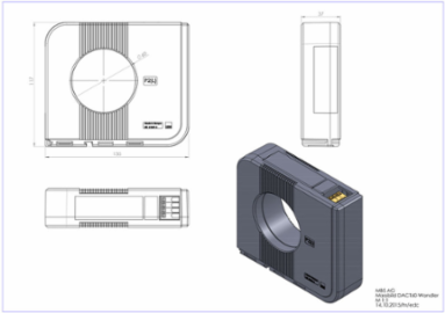

Dimensions And Weights
| Width | 135 mm |
|---|---|
| Height | 117 mm |
| Depth | 37 mm |
| Net weight | 240 g |
| Width (inches) | 5.315 inch |
|---|---|
| Height (inches) | 4.606 inch |
| Depth (inches) | 1.457 inch |
Input
| Input measurement range | 0.02…2 A / 0.25…25 A depending on terminal assignment |
|---|
Measuring Current Input
| Residual current measuring | Yes |
|---|
Classifications
| ETIM 6.0 | EC002048 |
|---|---|
| eClass 9.0 | 27-21-09-02 |
| eClass 10.0 | 27-21-09-02 |
| ETIM 7.0 | EC002048 |
|---|---|
| eClass 9.1 | 27-21-09-02 |
Technical Data
| Operating voltage U | 800 V |
|---|
Insulation Coordination
| Galvanic isolation | yes |
|---|---|
| Pollution severity | 3 |
| Standard | EN 60044⁄1 |
| Impulse withstand voltage | 8 kV |
|---|---|
| Rated voltage | 800 V |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -10 °C...70 °C |
| Operating temperature, min. | -10 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...70 °C |
