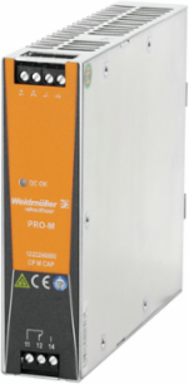

Weidmuller 1222240000 Capacity Module 5.905 Inch Depth, 24 V DC Rated Voltage, 725 g Weight
- MPN: 1222240000
- PPN: WDM-1222240000
CAD
$180.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Capacity module
Documentation & Downloads
Specifications
General Data
| Humidity | 5...95 %, no condensation |
|---|---|
| Mounting position, installation notice | Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between. |
| Protection degree | IP20 |
| MTBF | > 500,000 h in accordance with IEC 61709 (SN29500) |
|---|---|
| Operating temperature | -25 °C...70 °C |
Signalling
| Floating contact | Yes |
|---|
Connection Data (Input)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , min. | 0.5 mm² |
| Conductor cross-section, rigid , min. | 0.5 mm² |
| Wire connection cross section, flexible (input), max. | 4 mm² |
| Conductor cross-section, AWG/kcmil , min. | 26 |
|---|---|
| Conductor cross-section, rigid , max. | 6 mm² |
| Number of terminals | 4 (++--) |
Approvals
| Approvals | CE, CULUS, EAC, GERMLLOYD |
|---|---|
| UL File Number Search | E258476 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 34 mm |
|---|---|
| Height | 130 mm |
| Depth | 150 mm |
| Net weight | 725 g |
| Width (inches) | 1.339 inch |
|---|---|
| Height (inches) | 5.118 inch |
| Depth (inches) | 5.905 inch |
Electrical Safety (Applied Standards)
| Electrical machine equipment | Acc. to EN60204 |
|---|---|
| Safety extra-low voltage | SELV according to EN 60950, PELV according to EN 60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
|---|
Emc / Shock / Vibration
| Noise emission in accordance with EN55032 | Class B |
|---|---|
| Interference immunity test acc. to | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) |
| Vibration resistance IEC 60068-2-6 | 1 g according to EN 50178 |
|---|---|
| Shock resistance IEC 60068-2-27 | 15 g In all directions |
Input
| DC input voltage range | 18…30 V DC |
|---|---|
| Wire connection method | Screw connection |
| Rated input voltage | 24 V DC |
|---|
Classifications
| ETIM 6.0 | EC002850 |
|---|---|
| eClass 9.0 | 27-04-06-92 |
| eClass 10.0 | 27-04-06-92 |
| ETIM 7.0 | EC002850 |
|---|---|
| eClass 9.1 | 27-04-92-01 |
Output
| Peak current output | load dependent (typ. 40 A for 1 ms) |
|---|---|
| Switching thresholds | 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail |
| Wire connection method | Screw connection |
| Recovery time for the capacitor | Approx. 1 sec. |
|---|---|
| Voltage monitoring | Yes |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Insulation voltage | 0.5 kV Input / output - Box |
|---|---|
| Protection class | III, with no ground connection, for SELV |
| Pollution severity | 2 |
|---|
Connection Data (Output)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, rigid , max. | 6 mm² |
| Number of terminals | 3 (CO contacts) |
| Conductor cross-section, AWG/kcmil , min. | 26 |
|---|---|
| Conductor cross-section, flexible , min. | 0.5 mm² |
| Conductor cross-section, rigid , min. | 0.5 mm² |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...70 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E258476 |
|---|
