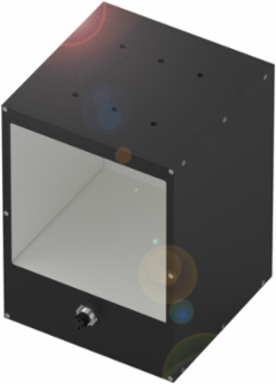

Coaxial LED Light 150 x 110 x 108 mm, 24 V, 105° Beam Angle
Balluff

Balluff BAE LX-VS-OR100 Coaxial LED Light 150 x 110 x 108 mm, 24 V, 105° Beam Angle

  • MPN: BAE LX-VS-OR100
  • PPN: BAL-BAE00JA

CAD

$3155.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Illuminate your workspace with the Balluff Coaxial LED Light, designed for optimal performance and durability. Measuring 150 x 110 x 108 mm, this robust lighting solution operates at a rated voltage of 24 V and features a wide beam angle of 105°, ensuring even illumination across an area of 100 x 100 mm. Crafted from anodized aluminum with a sleek black finish, this light not only meets the highest standards of quality, as evidenced by its CE and UKCA approvals, but also boasts an impressive illumination of 3550 Lux at a distance of 0.1 m. With an IP54 rating, it is well-suited for various environments, operating efficiently in temperatures ranging from -10 to 55 °C. Whether for industrial applications or detailed tasks, this LED light provides reliable and consistent lighting performance.

Documentation & Downloads

Specifications

Additional

Voltage
24 V
Beam Angle
105 ° x 105 °
Illuminated Area
100 x 100 mm
Connection
Connector, M8x1-Male, 3-pin
IP Rating
IP54
Approval/Conformity
CE; UKCA; WEEE
Version
Coax lighting
Operating Mode
Normal (continuous operation)
Current Draw Max.625 mA
Illumination (0.1 m)3550 Lux
Dimension150 x 110 x 108 mm
MaterialAluminum anodized, black; Glass
Operating Temperature Range-10 to 55 °C
Country of OriginGermany
Light TypeLED Red light
Wave Length630 nm
