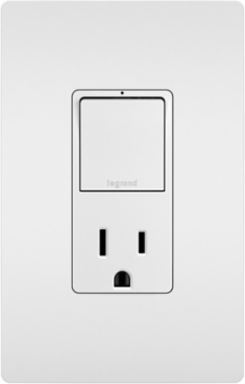

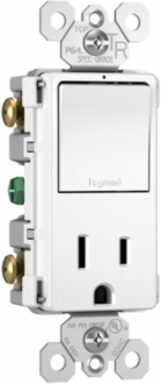

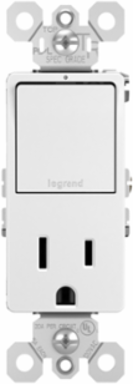

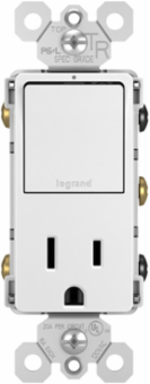

Radiant RCD38TRW Single Pole/3-Way Switch with 15A Tamper-Resistant Outlet, White, 3.81 Inch Height
- MPN: RCD38TRW
- UPC: 785007055085
- PPN: P-S-RCD38TRW
CAD
$22.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
A step up from ordinary, this combination switch and outlet from the radiant® Collection provides convenience and flexibility, as well as style. Operable in both single-pole and 3-way applications, you can use it alone to control one light or fixture, or use with another 3-Way switch for controlling the light from two locations. Also includes a tamper-resistant outlet for safe access to the basic power every home needs. Part of the radiant® Collection, it features clean lines and a smooth finish for a sophisticated look.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Replaces a standard switch/outlet with ease, in as little as 10 minutes.

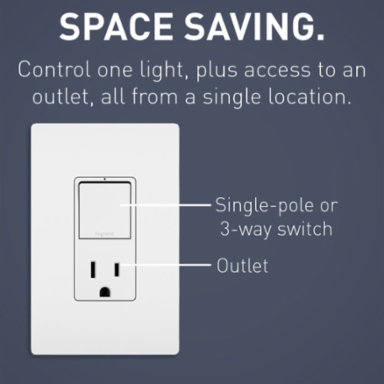

- Offers installation flexibility, working in both single-pole and 3-way applications.
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with ""invisi-shutters"" for an invisible effect.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.59 in |
|---|---|
| Color | White |
| Width | 1.29 in |
| Country of Origin | China |
| Amperage | 15.0 A |
| Mounting Type | Box |
| Standard | UL Listed |
| Number of Wires | 5.0 |
| Indoor/Outdoor | Indoor |
| Features | Locator Light |
| Wall Plate Included | No |
| Wire Size | #14 - #10 AWG |
| Number of Receptacles | 1.0 |
| Outlet Type | Tamper-Resistant |
| Application Sector | Residential |
| Wire Connection Type | Screw Terminals |
| Application Sector | Multi-Dwelling Unit |
| Special Features | Single Pole 3-Way Switch |
| Height | 3.81 in |
|---|---|
| Finish | Matte |
| Product Line | Pass & Seymour |
| Standard | cULus |
| Switch Type | Push |
| Voltage | 120/125 V |
| Number of Gangs | 1.0 |
| Features | Combination |
| Number of Poles | 3-Way |
| Number of Switches | 1.0 |
| Is Tamper-Resistant | Yes |

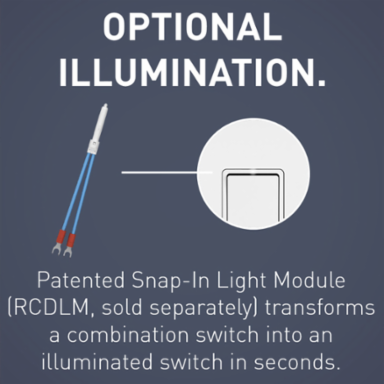

| Compatible Add-Ons | RCDLM |
| Number of Poles | Single Pole |
| Application Sector | Hospitality |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Jigsaw Channel Availability | Distribution |
| Environmental Conditions | Flammability Rating: UL 94 V2 |
