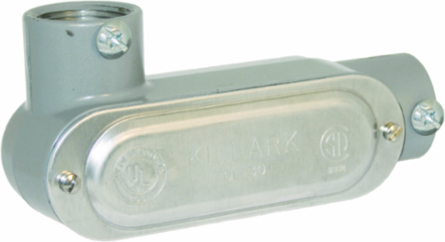

Killark COLL-1CG Combo LL Aluminum Conduit Body 1/2 Inch with Cover & Gasket
Killark COLL-1CG Combo LL Aluminum Conduit Body 1/2 Inch with Cover & Gasket
- MPN: COLL-1CG
- UPC: 783936067834
- PPN: HBL-COLL-1CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.15/ EA
Description
Combo LL Aluminum Conduit Body, Cover,Gasket 1/2"
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 4 cu. in.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 2.000 in
- Color
- Gray
- Height
- 2 in
- Length
- 5 in
- Type
- Conduit Body With Cover & Gasket
- Cover Type
- Stamped
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COMBO LL CONDUIT BODY AL, CVR,GASK 1/2"
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 10 EA
- Sub Class Code
- D30D231
- Hub Pattern
- LL
- Series
- CO Series
- BOX SIZE
- 8.750x15.500x6.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936067834
- Master Pack Description
- Each
Dimensions5 in x 2 in x 2 in
ApplicationTo provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
FinishPowder Epoxy Paint
Hub Size1/2"
Special FeaturesCombination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 4 cu. in.
Width2 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
Gross Weight with Packaging0.34
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
