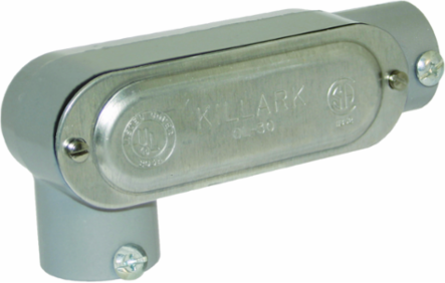

Killark COLR-3CG Aluminum Combo LR Conduit Body 1 Inch with Cover & Gasket
Killark COLR-3CG Aluminum Combo LR Conduit Body 1 Inch with Cover & Gasket
- MPN: COLR-3CG
- UPC: 783936067919
- PPN: HBL-COLR-3CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$138.85/ EA
Description
Combo LR Aluminum Conduit Body, Cover,Gasket 1"
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 12 cu. in.
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1"
- Special Features
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 12 cu. in.
- Width
- 3 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- Gross Weight with Packaging
- 0.67
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.900 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Dimensions7 in x 3 in x 2 in
ColorGray
Height2 in
Length7 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
ARRA CompliantContact Manufacturer
Description - InvoiceCOMBO LR CONDUIT BODY AL, CVR,GASK 1"
Harmonization Code7609000000
Lead Time49 wk
Order Multiple5 EA
Sub Class CodeD30D231
Hub PatternLR
SeriesCO Series
BOX SIZE8.500x15.500x6.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936067919
Master Pack DescriptionEach
