Killark

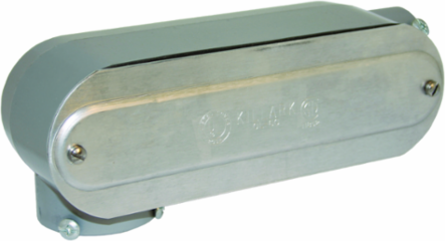

Killark COLR-6CG Aluminum Conduit Body 2 Inch with Cover & Gasket, Type LR, 70 cu. in. Volume

Aluminum Conduit Body 2 Inch with Cover & Gasket, Type LR, 70 cu. in. Volume
  • MPN: COLR-6CG
  • UPC: 783936067940
  • PPN: HBL-COLR-6CG
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$408.25/ EA

Description

Combo LR Aluminum Conduit Body, Cover,Gasket 2"

Features

  • Combination bodies have threaded and set screw hubs
  • Prepackaged with body, cover, and gasket
  • For use with IMC and EMT conduit
  • Covers furnished with stainless steel screws
  • NPSM threads
  • Type 3 rated with Rigid / IMC conduit
  • Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 70 cu. in.

Specifications

Specifications

Country of Origin
United States
Application
To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
Finish
Powder Epoxy Paint
Hub Size
2"
Special Features
Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 70 cu. in.
Width
5 in
Finish Type
Powder Epoxy Paint
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
No
Gross Weight with Packaging
2.71
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Master Pack Description
Each
Dimensions11 in x 5 in x 4 in
ColorGray
Height4 in
Length11 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
ARRA CompliantContact Manufacturer
Description - InvoiceCOMBO LR CONDUIT BODY AL, CVR,GASK 2"
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D231
Hub PatternLR
SeriesCO Series
Carton - SCC-14 Next Lower Level Sub Pack00783936067940

Certifications

EU RoHS Indicator
Contact Manufacturer

Downloads
