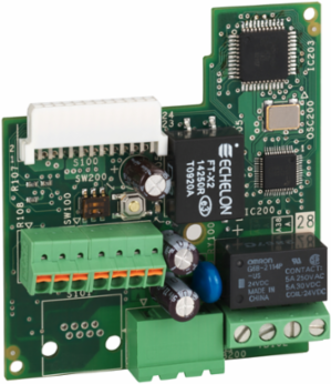

Schneider Electric VW3A21212 Communication Card LonWorks with Multifunction Relay Output
- MPN: VW3A21212
- PPN: SCH-VW3A21212
CAD
$482.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance the functionality of your Altivar 212 Drive with the Schneider Electric VW3A21212 Communication Card, designed specifically for seamless integration into automated systems. This communication card utilizes LonWorks technology, providing reliable and efficient data exchange, which is essential for streamlined automation processes. With its lightweight design, it easily fits into your existing setup, ensuring that communication between devices is efficient and effective. This component is an essential addition for those looking to optimize their motor control solutions within the realms of automation and control technology.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, Hong Kong, Indonesia, United States |
|---|
Communications & Management Attributes
| Communication Port Protocol | LonWorks |
|---|
Important Information Attributes
| Electrical Connection | screw terminal NETA, NETB LonWorks transmission/reception datascrew terminal SHLD LonWorks communication shieldscrew terminal G/E grounding terminal, spring terminal F programmable logic inputspring terminal R programmable contact inputspring terminal VIB multifunction programmable analog inputspring terminal CC control circuit equipotentialspring terminal P24 power supply outputscrew terminal FLA, FLB, FLC multifunction programmable relay output, screw/spring terminal block |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1851 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504909690 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Or Component Type | communication card |
| Sustainable Packaging | No |
| Package Weight(Lbs) | 183.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | communication card |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Output Attributes
| Output Type | multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 Apower supply output P24 24 V DC 50 mA |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Type | multifunction programmable logic input F < 24 V DC 5 mA sink or sourcemultifunction programmable contact input R < 24 V DC 5 mA sink or sourcemultifunction programmable analog input VIB 10 V DC 30 kOhm |
|---|
