Schneider Electric TPRBCPFB TeSys Island Bus Coupler, 24V DC, 3A, Profibus DP, 50mm Width
- MPN: TPRBCPFB
- PPN: SCH-TPRBCPFB
CAD
$632.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

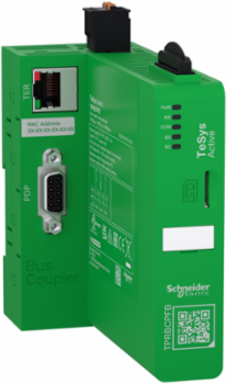

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFIBUS DP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides one D-Sub port for PROFIBUS DP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
| Depth | 114 mm |
|---|
Communications & Management Attributes
| Communication Service | type 3 data-link layer service ProfibusDHCP client Ethernet TCP/IP, SNTP client Ethernet TCP/IP |
|---|
| Communication Port Protocol | Profibus DP |
|---|
Complementary Attributes
| Integrated Connection Type | 1 SUB-D 9 female Profibus DP, fieldbus port, 1 RJ45 female Ethernet TCP/IP, service port, 1 micro SD card port |
|---|
| Rated Current | 3 A maximum |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electromagnetic Compatibility | power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5 |
| Local Signalling | 1 LED green/yellow PWR power supply status, 1 LED green/red MS module status1 LED green/red COM network status1 LED green/red BS internal bus status1 LED green/red SD SD card access (SD) |
| Certificate Agency | UL, CSA, EACAchilles level 2, PNO |
| Local Publishable Date | 2025-07-09 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1904009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cybersecurity | Achilles certified |
| Energy Efficiency Optimized | False |
| Mounting Mode | horizontal and vertical 35 mm symmetrical rail) |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | bus coupler |
| Range | TeSys |
| Shock Resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 118 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| Halogen-free Status | Halogen free plastic parts and cables product |
| Package Weight(Lbs) | 288.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Function Available | full integration with SoMove for the control of the island, one single 24V DC power supply for the complete island, one fieldbus port for communication with an automation controller, one service port with an embedded webserver for maintenance |
| Protection Type | external fuse, 3 A fast power supply, reverse polarity protection power supply |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | TPRBC |
| Fire Resistance | 960 °C UL 94 |
| Power Dissipation In W | 7 W maximum |
| Product Name | TeSys island |
| Protective Treatment | TC |
| Returnability | No |
| Supply Voltage Limits | 20.4-28.8 V DC |
| Vibration Resistance | 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6 |
| Pep Code | ENVPEP1904009EN |
| Width Nominal | 50 mm |
| Connections - Terminals | power supply removable spring terminal block 2 2.5-2.5 mm² 14 AWG)rigid or flexible |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts & cables product |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1904009EN |
| Halogen Content Performance | Halogen free plastic parts & cables product |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1904009EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Ambient Air Temperature For Operation | -10-60 °C-10-60 °C |
| Circularity Profile | ENVEOLI1904009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | TPRST motor starterTPRSS SIL motor starterTPRPM power moduleTPRSM SIL interface moduleTPRVM voltage interface moduleTPRAN analog IO moduleTPRDG digital IO module |
| Relative Humidity | 5-95 % |
General Attributes
| Product Or Component Type | bus coupler |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | point of connection between a group of starters and an automation controller, management of the complete island up to 20 modules |
|---|
