Schneider Electric TPRBCPFN TeSys Island Bus Coupler, 24V DC, 3A, Profinet IO, IP20
Schneider Electric TPRBCPFN TeSys Island Bus Coupler, 24V DC, 3A, Profinet IO, IP20
- MPN: TPRBCPFN
- PPN: SCH-TPRBCPFN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$596.62/ EA
Description

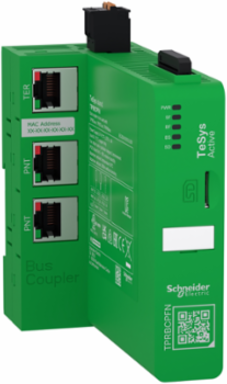

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
- Pollution Degree
- 2
- Protective Treatment
- TC
- Ip Degree Of Protection
- IP20
- Fire Resistance
- 960 °C UL 94
Shock Resistance15 gn 11 ms) IEC 60068-2-27
Electromagnetic Compatibilityelectrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4 || power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5 || power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity5-95 %
Operating Altitude0...2000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904009EN
Halogen Content PerformanceHalogen free plastic parts & cables product
Complementary
- Mounting Mode
- horizontal and vertical 35 mm symmetrical rail)
- Product Certifications
- UL || CSA || EAC || Achilles level 2 || PNO
- Connections - Terminals
- power supply removable spring terminal block 2 2.5-2.5 mm² AWG 14)rigid or flexible
- Cybersecurity
- Achilles certified
- Depth
- 114 mm
Height118 mm
StandardsEN/IEC 60947-4-1 || CSA C22.2 No 61010-2-201 || UL 61010-2-201 || EN/IEC 61010-2-201
Net Weight0.204 kg
Width50 mm
Specifications
- Rated Current
- 3 A maximum
- Product Or Component Type
- bus coupler
- Local Signalling
- 1 LED green/yellow PWR power supply status || 1 LED green/red SF system fault || 1 LED green/red BF network status || 1 LED green/red BS internal bus status || 1 LED green/red SD SD card access (SD)
- Range
- TeSys
- Communication Service
- conformance class A (CC-A) || net load class 1 || DHCP client || SNTP client
- Communication Port Protocol
- Profinet IO
- Supply Voltage Limits
- 20.4-28.8 V DC
- [Us] Rated Supply Voltage
- 24 V DC
Protection Typeexternal fuse, 3 A fast power supply || reverse polarity protection power supply
Product NameTeSys island
Power Dissipation In W7 W maximum
Device Presentationpoint of connection between a group of starters and an automation controller || management of the complete island up to 20 modules
Function Availablefull integration with SoMove for the control of the island || one single 24V DC power supply for the complete island || two fieldbus ports for communication with an automation controller || one service port with an embedded webserver for maintenance
Product CompatibilityTPRST motor starter || TPRSS SIL motor starter || TPRPM power module || TPRSM SIL interface module || TPRVM voltage interface module || TPRAN analog IO module || TPRDG digital IO module
Integrated Connection Type2 RJ45 female Profinet IO, fieldbus port || 1 RJ45 female Ethernet TCP/IP, service port || 1 micro SD card port
Device Short NameTPRBC
