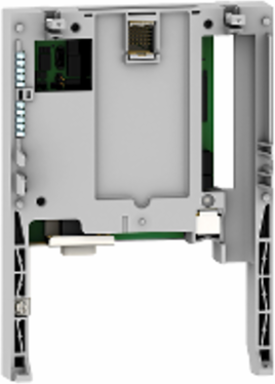

Schneider Electric VW3A3307 Profibus DP Communication Card, 9-Way Female SUB-D, Compatible with Altivar 61/71
- MPN: VW3A3307
- PPN: SCH-VW3A3307
CAD
$421.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This PROFIBUS DP V0 communication card is an option for variable speed drives of Altivar range. It is equipped with a 9-way female SUB-D connector. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 300g.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, United States |
|---|
Communications & Management Attributes
| Communication Service | CiA 402 profile, I/O profile, I/O data, communication monitoring can be inhibited, adjustable, PPO type 5 |
|---|
| Communication Port Protocol | Profibus DP |
|---|
Important Information Attributes
| Display Type | 1 LED DX (data exchange), 1 LED ST (status)graphic display terminal control word received, graphic display terminal I/O data, graphic display terminal reference received |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.0371583565, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0109528014, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 43 kg CO2 eq., 42.919 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | End User |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Connector Type | 9-way female SUB-D connector |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2010008EN |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 1847.2 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 42.919 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 160.02 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 857.19 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 748.19 |
| Water Pollution (M3) Operational Energy Use [B6] | 1771 |
| Transmission Rate | 1.5 Mbps, 12 Mbps, 9600 bps, 3 Mbps, 500 kbps, 19.2 kbps, 187.5 kbps, 6 Mbps, 93.75 kbps |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0788895076 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 5.5966859083 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Use Carbon Footprint | 42.919 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Persona Type Ids | EU |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Number Of Addresses | 1-126 |
| Product Or Component Type | communication card |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 49 kg CO2 eq. |
| Database Version | 2018-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Quickly interact with the drive and option cards of other drives as well as adapt the variable speed drive to specific applications for 10 years |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 87.6 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Package Weight(Lbs) | 281.000 g |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 487.17 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 155.62 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 748.19 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 109 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 109 |
| Customs Code | 8517620090 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 48.6426865739 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2010008EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010008EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | communication card |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
