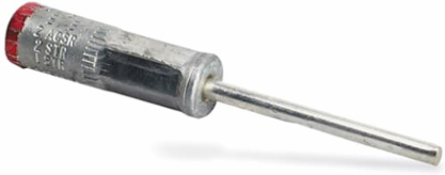

Blackburn PRS30N Compression Pin Terminal Pigtail 1/2 x 8 Inch Aluminum, 35 kV, 2 Conductors

Compression Pin Terminal Pigtail 1/2 x 8 Inch Aluminum, 35 kV, 2 Conductors
  • MPN: PRS30N
  • UPC: 783786050468
  • PPN: T-B-PRS30N
  • UNSPSC: 39121458

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$165.11/ EA

Description

Compression Pin Terminal Aluminum, Contax filled for Wire Range 266 26/7, 366 18/1 ASCR, 300-350 MCM, Pigtail: 0.500 x 8, Hydraulic Dies: B80EA, CSA 26, 96H, EEI 13A, 655, 1 1/8

Specifications

Additional Information

Application
Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings
Connection Type
Compression
Insulation Material
None
Mounting Type
None
Pigtail Size
1/2 x 8 in
Product Type
Pigtail Compression Sleeve
Special Functions
Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor.
Voltage Rating
35 kV
Brand / LabelBlackburn
Effective Date19991027
MaterialAluminum Sleeve, Pre-attached Copper Pigtail
Number of Conductors2
Product NamePIGTAIL COMPRESS CONN
SizeSleeve Length 5 inches
Surface FinishingTinplated Pigtail

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4685 >> Wire or cable compression reducer

Ordering

Country of Origin
Mexico (MX)
Selling Unit of Measureeach
