Schneider Electric ILE1F661PB1A0 Brushless DC Motor, 122mm, 24-36V, CANopen Interface, IP54

MPN: ILE1F661PB1A0
PPN: SCH-ILE1F661PB1A0

$1477.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

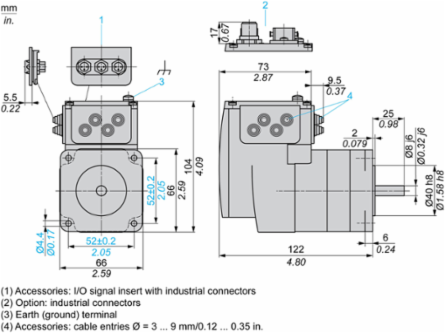

This product is part of the Lexium ILE range, an offer of integrated motion drives for motion control. The motion integrated drive with a 6-pole brushless DC motor features an integrated CANopen DS301 communication interface and untapped shaft without holding brake. The brushless DC motor with a rated supply voltage of 24V, 36V DC, a peak current consumption of 7000mA and a nominal speed of 4800RPM at 36V. The shaft dimensions are 8mm (diameter) x 25mm (length). It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 122mm (length) x 66mm (width) and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 73.54mm mounting hole. Its weighs 1.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, EN/IEC 50178, EN 61800-3 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 66mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany, United States

Communications & Management Attributes

Communication Interface	CANopen DS301, Integrated

Physical Attributes

Motor Flange Size	66 mm

Shaft Length	25 mm

Complementary Attributes

Maximum Axial Force Fa	30 N force pressure), 30 N tensile force)
Maximum Mechanical Speed	5000 rpm
Maximum Switching Current	100 mA per output200 mA total

Maximum Supply Current	0.06 A 36 V power stage disabled)0.1 A 24 V power stage disabled), 4.7 A 24 V, 5.1 A 36 V
Maximum Radial Force Fr	80 N

Important Information Attributes

Coefficient 1 1	-7.5E-05 N.m/rpm, -7.5E-05 N.m/rpm
Protection Type	overload of output voltage, short circuit of the output voltage, safe torque off
Voltage State 0 Guaranteed	-3...4.5 V, -3...4.5 V
[Us] Rated Supply Voltage	24 V, 36 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.2260156893
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	17 kg CO2 eq., 17.1473708738
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Use Carbon Footprint	191.4232
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Centring Collar Diameter	40 mm
Coefficient 1 0	0.485 N.m
Coefficient M0	8E-06 N.m/rpm
Compatibility Code	ILE
Current Consumption	7000 mA peak5500 mA maximum continuous
Detent Torque	0.08 N.m
Electrical Connection	printed circuit board connector
Gear Box Type	without
Marking	CE
Mounting Holes Diameter	4.4 mm
Network Number Of Phases	1
Nominal Speed	4000 rpm 24 V4800 rpm 36 V
Number Of Motor Poles	6
Number Of Mounting Holes	4
Phase	single phase
Product Or Component Type	motion integrated drive
Reduction Ratio	1:1
Rotor Inertia	0.149 kg.cm²
Service Life In Hours	20000 h bearing
Shaft End	untapped
Sizing Reference	ILE1_661_A0
Speed Feedback Resolution	12 points/turn
Sustainable Packaging	No
Transmission Rate	50, 100, 125, 250, 500, 800 and 1000 kbauds
Vibration Resistance	20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1	3208.955 rpm
Voltage 2	36 V
Voltage 2 Speed 2 Max	3208.956 rpm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2011005EN
Pep Verification Date	2020-11-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To coordinate and synchronize motion control with stepper, servo or burshless DC motor 70% of the time for 10 years.
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	390.696
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Input/Output Type	4 signals (each be used as input or output)
Nbr. Of Units In Pkg.	1
Take-back	No
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	191.4232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	486.14

Coefficient 2 1	-8E-06 N.m/rpm, -8E-06 N.m/rpm
Supply Voltage Description	single phase 24 V DC, single phase 36 V DC
Certificate Agency	cUL, UL, TÜV
Carbon Footprint Of The Distribution Phase [A4]	0.2172768738, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0128826, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	191 kg CO2 eq., 191.4232
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2011005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Associated Fuse Rating	10 A
Circle Diameter Of The Mounting Holes	73.54 mm
Coefficient 2 0	0.27 N.m
Coefficient M0 Max	8E-06 N.m/rpm
Continuous Stall Torque	0.27 N.m
Curve Type	lin
Device Short Name	ILE
Feedback Type	BLDC encoder
Holding Brake	without
Motor Type	brushless DC motor
Mounting Support	flange
Network Type	DC
Nominal Torque	0.175 N.m 24 V0.24 N.m 36 V
Number Of Motor Stacks	1
Peak Stall Torque	0.26 N.m 24 V0.36 N.m 36 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium integrated drive
Returnability	No
Second Shaft	without second shaft end
Shaft Diameter	8 mm
Shock Resistance	150 m/s² 1000 shocks IEC 60068-2-29
Software Version	EIME v5.8.1
Supply Voltage Limits	18-40 V
Total Lifecycle Carbon Footprint	209 kg CO2 eq.
Type Of Cooling	natural convection
Voltage 1	24 V
Voltage 1 Speed 1 Max	3208.955 rpm
Voltage 2 Speed 2	3208.955 rpm
Voltage State 1 Guaranteed	15...30 V
Winding Type	medium speed of rotation and medium torque
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Germany
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Length Total	122 mm
Accuracy Error [Angular]	1 °
Package Weight(Lbs)	1.684 kg
Warranty (In Months)	18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	486.14
Customs Code	8501314000

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	209.0267460369
Circularity Profile	ENVEOLI2011005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	105 °C power amplifier110 °C motor
Relative Humidity	15-85 % without condensation
Pep Verification Date	2020-11-01
Type Of Verification For The Pep	Independent internal review

Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental Disclosure	ENVPEP2011005EN
Ip Degree Of Protection	IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2011005EN
Pcr Version	PCR-ed3-EN-2015 04 02
