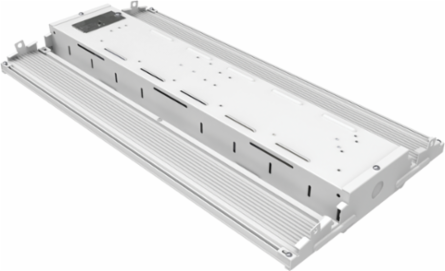

Acuity Brands CPHB 24000LM SEF GCL MD HVOLT GZ10 50K 80CRI DWH Compact Pro High Bay, LED, 24,000LM, Standard efficiency, Glare Control Lens, Medium, 347V-480V, Generic driver 0-10V dimming, 5000K, 80 color rendering index, White
- MPN: CPHB 24000LM SEF GCL MD HVOLT GZ10 50K 80CRI DWH
- UPC: 194995213047
- PPN: LTH-CPHB 24000LM SEF GCL MD HVOLT GZ10 50K 80CRI DWH
- UNSPSC: 39112102
CAD
$306.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Compact Pro High Bay, LED, 24,000LM, Standard efficiency, Glare Control Lens, Medium, 347V-480V, Generic driver 0-10V dimming, 5000K, 80 color rendering index, White
Documentation & Downloads
Specifications
Key Specifications
- Product Type
- High Bay
- Standard
- CSABAA and BABA,DLC Premium
- Lumens
- 24,000 LM
- Lamp Type
- LED - Static
- Shape
- Rectangular
- Environmental Conditions
- Indoor
- Wattage
- 174
- Color Rendering Index (CRI)
- 80
- Finish
- Gloss
- Maximum Operating Temperature
- 55
- Style
- Traditional
- Lens Color
- White
- Lens
- Yes
- Length
- 44.1 in
- Width
- 11.5 in

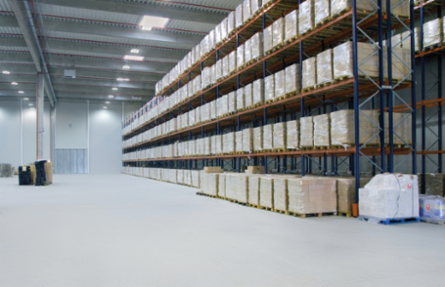

ApplicationCommon Areas,Education,Government,Manufacturing,Offices & Banks,Retail,Retrofit,Warehouses
Voltage Rating347-480
ColorWhite
Number of Lamps2
MountingPendant,Surface,Suspended
Color Temperature5000 K
MaterialAluminum
DimmableYes
Average Life100,000 hrs
Lamp IncludedYes
Lens MaterialAcrylic
Warranty5 Year Limited
Height2.4 in
Weight7.473 lbs
Country of OriginMexico
