Schneider Electric XB4BC61GEX Harmony XB4 Complete Push Button, 40mm Mushroom Head, IP65, 1 NO
Schneider Electric XB4BC61GEX Harmony XB4 Complete Push Button, 40mm Mushroom Head, IP65, 1 NO
- MPN: XB4BC61GEX
- PPN: SCH-XB4BC61GEX
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$124.43/ EA
Description

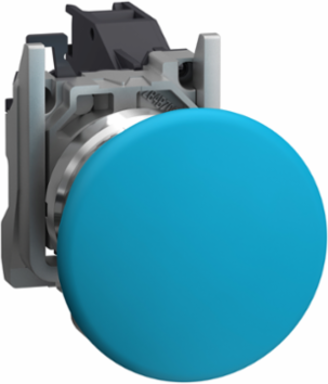

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. It is a blue pushbutton with mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 40mm mushroom diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Specifications
- Range Of Product
- Harmony XB4
- Mounting Diameter
- 22 mm
- Product Or Component Type
- complete push-button
- Gas Zone
- zone 1 - 2
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- blue mushroom Ø 40 mm
Dust Zonezone 21 - 22
Type Of Operatorspring return
Fixing Collar Materialzamak
Contacts Type And Composition1 NO
Bezel Materialchromium plated metal
Device Short NameXB4
Environment
- Product Certifications
- INERIS 04ATEX9004U
- Standards
- IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-20-75 °C
Ip Degree Of ProtectionIP65 IEC 60529
Protective TreatmentTH
Complementary
- Height
- 30 mm
- Embedding Depth
- 58 mm
- Operating Travel
- 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Marking
- II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Mechanical Durability
- 5000000 cycles
- Depth
- 96.5 mm
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Operating Force3.962 N
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Positive Openingwithout
Shape Of Signaling Unit Headround
Net Weight0.126 kg
[Ui] Rated Insulation Voltage415 V
Contact Operationslow-break
Width46.2 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
