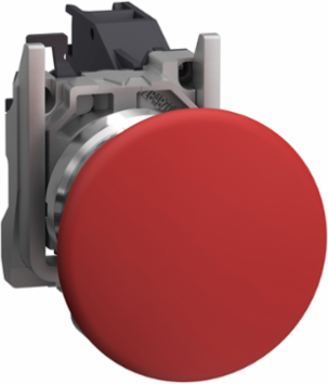

Schneider Electric XB4BC42GEX Complete push button, Harmony XB4, Explosive atmosphere, red mushroom pushbutton

MPN: XB4BC42GEX
PPN: SCH-XB4BC42GEX

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$124.43/ EA

Qty:

Loading add to cart quantity...

Description

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. It is a red pushbutton with mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 40mm mushroom diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Specifications

Environment

Product Certifications: INERIS 04ATEX9004U

Standards: IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213

Ambient Air Temperature For Storage: -40-70 °C

Ambient Air Temperature For Operation-20-75 °C

Ip Degree Of ProtectionIP65 IEC 60529

Protective TreatmentTH

Complementary

Height: 30 mm

Embedding Depth: 58 mm

Operating Travel: 1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)

[Ith] Conventional Free Air Thermal Current: 10 A IEC 60947-5-1

Marking: II 2 GD || Ex db eb IIC Gb || Ex tb IIIC Db

Connections - Terminals: screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1

[Ie] Rated Operational Current: 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1

Mechanical Durability: 5000000 cycles

Depth: 96.5 mm

Device Mounting: fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1

Operating Force2.873 N

Fixing Center>= 30 x 40 mm support panel) 1-6 mm

Positive Openingwith

Shape Of Signaling Unit Headround

Net Weight0.127 kg

[Ui] Rated Insulation Voltage415 V

Contact Operationslow-break

Width46.2 mm

Tightening Torque0.8-1.2 N.m IEC 60947-1

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1808008EN

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileENVEOLI1808008EN

Specifications

Range Of Product: Harmony XB4

Mounting Diameter: 22 mm

Product Or Component Type: complete push-button

Gas Zone: zone 1 - 2

Sale Per Indivisible Quantity: 1

Operator Profile: red mushroom Ø 40 mm

Dust Zonezone 21 - 22

Type Of Operatorspring return

Fixing Collar Materialzamak

Contacts Type And Composition1 NC

Bezel Materialchromium plated metal

Device Short NameXB4
