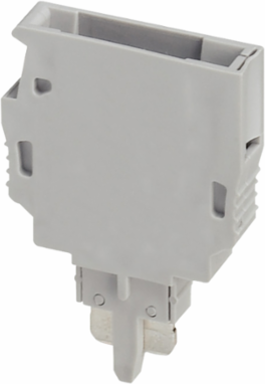

Schneider Electric NSYTRASV1 Component carrier, Linergy TR, for basic disconnect terminals NSY TRV42TV, TRR22TB
- MPN: NSYTRASV1
- PPN: SCH-NSYTRASV1
CAD
$13.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Component carrier for Linergy TR terminals blocks It is compatible with TRV screw, TRR spring and TRP Push-in terminal blocks. Component carrier for all disconnect terminals and component Component carrier made with Polyamide (PA 6.6) and Grey Colour Sold in lots of 10 units.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Poland, United States
Physical Attributes
- Color
- Gray
Important Information Attributes
- Cable Cross Section
- 2.5-2.5 mm², 4-4 mm²
- Terminal Block Level
- 2, 1
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- component carrier
- Range
- Linergy
- Returnability
- Yes
- Thickness
- 5.2 mm
- Accessory / Separate Part Category
- connection accessory
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Number Of Terminals3, 2
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0844
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameTRA
Mounting Modeplug-in
Product NameTR
Quantity Per Setset of 10
Range Of ProductLinergy
Sustainable PackagingNo
Length Total24 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)3.000 g
Take-backNo
Customs Code8536698000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- TRV screw terminal - removable carrier disconnect terminal blockTRR spring terminal - removable carrier disconnect terminal blockTRP push-in - removable carrier disconnect terminal block
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Silicon FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- component carrier
Range Of ProductLinergy
ETIM
- ETIM 8
- EC002018
ETIM 9EC002018
Input Attributes
- Number Of Measurement Input
- 0, 1
