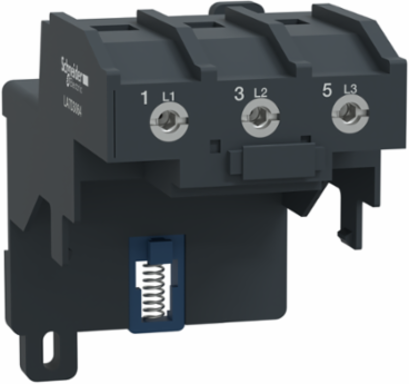

Schneider Electric LA7D3064 TeSys Deca Adapter Terminal Block for LRD33/LR2D3/LR3D3, 121 mm Depth
- MPN: LA7D3064
- PPN: SCH-LA7D3064
CAD
$48.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys LRD terminal block, for thermal overload relays LRD33**, LR3D33**, LR2D35**. To be used for a separate mounting of overload relay and contactor. It provides top connections by screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws. Green Premium compliant (RoHS/REACh).
Features
- This Schneider Electric TeSys Deca adapter terminal block is engineered specifically to allow separate, standalone panel mounting of your thermal overload relays. By decoupling the relay from the main contactor body, it gives layout designers total flexibility to optimize space, manage thermal dissipation, and streamline wiring paths inside complex motor control centers.
- This terminal adapter is a factory-spec match engineered for seamless physical and electrical integration with Schneider Electric TeSys LRD and TeSys D series overload relays, specifically the LRD33, LR3D33, LR3D35, and LR2D35 families. It provides an exact mechanical interface, eliminating compatibility guesswork and ensuring a rigid, reliable fit during system assembly or field retrofits.
- Built to adapt to your specific enclosure configuration, this versatile block features a dual-purpose mounting foot that clips securely onto standard 35mm DIN rails or fastens directly to a backpanel via traditional screw fixing. This flexible architecture ensures fast, stable installation in high-vibration industrial environments without requiring custom brackets or modified panel drilling.
- Equipped with high-integrity, heavy-duty top screw clamp terminals, this adapter block delivers optimal contact pressure and structural support for standard industrial power wiring. The rugged termination points resist thermal cycling and vibration-induced loosening, maintaining a permanent, low-resistance electrical pathway that prevents localized overheating and premature component failure.
- Featuring a compact, space-conscious profile measuring 104 mm in height, 75 mm in width, and 121 mm in depth, this connection accessory is optimized to maximize panel density. It allows maintenance teams to isolate and position critical motor protection components strategically, making the most of tight spatial constraints without violating required electrical clearances.
Documentation & Downloads
Specifications
Additional
- Product Or Component Type
- terminal block
- Height
- 104 mm (4.09 in)
- Depth
- 121 mm (4.76 in)
- Connections - Terminals
- screw terminals
- Mercury Free
- Yes
- China RoHS Regulation
- Pro-active declaration, out of legal scope
- RoHS
- Compliant
- EU RoHS Directive
- Compliant
- Accessory / Separate Part Category
- connection accessory
- Country of Origin
- France
Product CompatibilityLR2D35.., LR3D35.., LR3D33.., LRD33..
Width75 mm (2.95 in)
Net Weight0.37 kg (0.82 lb)
Mounting35 mm DIN-rail, screw fixing
Toxic Heavy Metal FreeYes
REACH RegulationFree of SVHC above threshold
RoHS Exemption InformationYes
RangeTeSys
Device Short NameLA7D
Warranty18 months
