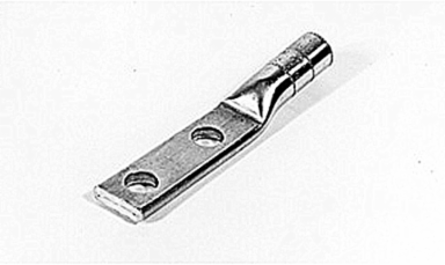

Blackburn AL 4/0 NTNV Aluminum Compression Lug, 4/0 Stranded, 1/2 Inch Bolt, 6 Inch Long
- MPN: AL 4/0 NTNV
- UPC: 783786826001
- PPN: T-B-AL 4/0 NTNV
CAD
$67.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Compression Lug, 4/0 Stranded, Aluminum and Copper, Bolt 1/2 inch, Two Hole NEMA Pad, Tin-Plated, contains oxide inhibitor. Straight Lug.
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- 4/0 stranded
- Finish
- Tin Plated
- Temperature Rating
- 90 Degrees Celsius
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
Size6 inch long x 1-15/64 inch wide
MaterialAluminum
InsulationNo
Bolt Size1/2 inch
Packaging
- Outer Quantity
- 50
- Weight Uom
- 0.21 lbs. Each
Outer Dimensions (inches)13.187x7.75x7
