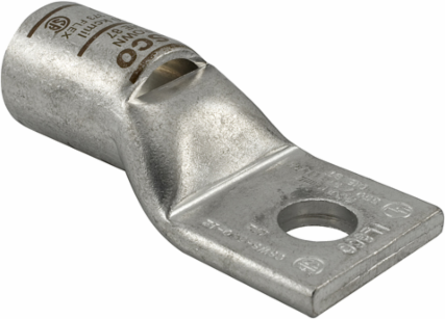

Ilsco CSWS-6-516 Surecrimp Copper Compression Lug, Conductor Size 6, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Ilsco CSWS-6-516 Surecrimp Copper Compression Lug, Conductor Size 6, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-6-516
- UPC: 0783669629019
- PPN: ILC-CSWS-6-516
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$5.25/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Barrel Length (IN)
- 0.5
- Dimension G (IN)
- 0.352
- Height BX (IN)
- 2.25
- Inside Diameter (IN)
- 0.225
- Length (mm)
- 39.878
- Mounting Hole Diameter (mm)
- 8.7122
- Outside Diameter (IN)
- 0.313
- Strip Length (mm)
- 14.2748
- Tang Length (mm)
- 22.225
- Tang Thickness (mm)
- 2.2098
- Tang Width (mm)
- 13.462
- Width BX (IN)
- 5
Barrel Length (mm)12.7
Dimension G (mm)8.9408
Height (mm)8.7122
Inside Diameter (mm)5.715
Mounting Hole Diameter (IN)0.343
Mounting Hole Spacing (mm)0
Outside Diameter (mm)7.9502
Tang Length (IN)0.875
Tang Thickness (IN)0.087
Tang Width (IN)0.53
Weight BX (LB)1.8347
Width (mm)13.462
Testing Standards
- CSA File Number
- LR-29601
- NEBS Rating
- Level 3
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 486A/B Listed, UL 467 Listed
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- No
- ILSCOs Die Catalog Number
- ILD-24
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Slotted
- No
- Undrilled
- No
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index NumberI-24
Narrow TangNo
Sight WindowYes
Tang End ShapeSquare
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 6 Sol
- Flex Conductor Range
- 6 G,H,I,K,M,DLO
Conductor Range CU Stranded (Primary, run, main, line)6 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded, Flex
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366962901
Specifications
- Height
- 0.343 in | 8.7122 mm
- Weight
- 0.0183113008105491 lbs
Length1.57 in | 39.878 mm
Width0.53 in | 13.462 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
Color
- Color
- Silver
Color CodeBlue
Environment and Temperature
- Temperature Rating
- 90°C
