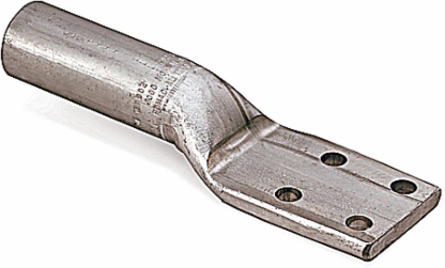

Aluminum Compression Lug 10 Inch Unbent Length, 4.563 Inch Barrel, Dual Rated

Documentation & Downloads

Blackburn AL 1000-4 N 90 Aluminum Compression Lug 10 Inch Unbent Length, 4.563 Inch Barrel, Dual Rated

MPN: AL 1000-4 N 90
UPC: 783786849017
PPN: T-B-AL 1000-4 N 90

CAD

$273.10

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Aluminum Four-Hole NEMA Lug 90 Degree, Concentric 1000, 954 Installing Dies 161,302,292,319,1 3/4. Unbent length 10 inches, Barrel 4.563 inches, Pad 4 inches long x 3 inch wide x .455 inch thick, Nominal length 6.455 inches

Features

Dual-Rated for Use with Aluminum and Copper Conductors.
Made of Aluminum for High Strength and High Conductivity.
Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
All Lugs Marked with Conductor Size and Die References for Easy Identification.
Meets or Exceeds ANSI C119.4 Specifications.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121448 Wire or cable compression connector

Brand Name: Blackburn

Special Features: Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.

Standard: ANSI C119.4

Conductor Range: Concentric 1000, 954

Insulation: No

IGCC4668 Wire or cable compression connector

TypeCompression Lug

ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations

SizeUnbent length 10 inches, Barrel 4.563 inches, Pad 4 inches long x 3 inch wide x .455 inch thick, Nominal length 6.455 inches

MaterialAluminum

Bolt Size5/8 inch

Packaging

Outer Quantity: 5

Weight Uom: 1.51 lbs. Each

Outer Dimensions (inches)13.18x7.75x7
