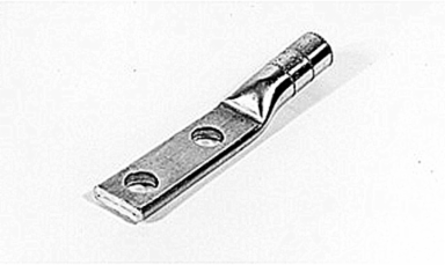

Blackburn AL 500 NTN 90 Aluminum Compression Lug 8 Inch, Pad 4 x 1.75 Inch, ANSI C119.4
- MPN: AL 500 NTN 90
- UPC: 783786693870
- PPN: T-B-AL 500 NTN 90
CAD
$164.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Two-hole NEMA Lug - Straight Lug, 90 Degrees, Concentric 500 And 477, Compact 500-600, ACSR 397.5 (26/7) And 477 (18/1), Installing Dies 106A,300,317,1 5/16,14A,15A, Tin-plated. Unbent length 8 inches, Pad 4 inch x 1.75 inch wide x .455 inch thick. Nominal length 5.455 inches
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- Concentric 500 And 477, Compact 500-600, ACSR 397.5 (26/7) And 477 (18/1)
- Finish
- Tin Plated
- Temperature Rating
- 90 Degrees Celsius
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
SizeUnbent length 8 inches, Pad 4 inch x 1.75 inch wide x .455 inch thick. Nominal length 5.455 inches
MaterialAluminum
InsulationNo
Bolt Size1/2 inch
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.63 lbs. Each
Outer Dimensions (inches)13.375x8.25x7.875
