Schneider Electric NSYCUSP001DG Condenser fan kit for Connected Cooling Unit, Climasys CU, Side 350 - 600W, Roof 600W, 230V
- MPN: NSYCUSP001DG
- PPN: SCH-NSYCUSP001DG
CAD
$1260.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

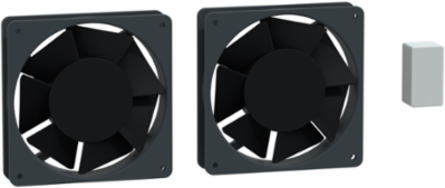

This Connected Cooling Unit Spare part is composed with 2 Axial fans & 1 Power supply. Its fan power is 14W, with a nominal voltage of 230V. Its air flow is 400m3/h. Its dimensions (HxWxD) are 75 mmx120 mmx120 mm.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Malta
- Width
- 4.72 in
Height2.95 in
Depth120 mm
Physical Attributes
- Color
- Black
Important Information Attributes
- Product Destination
- axial fan side/top cooling unit 350 W, Ue = 230 V, side/top cooling unit 650 W
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Fixing Mode
- by screw
- Mounting Location
- Internal
- Operational Power In W
- 14 W
- Product Name
- CU
- Quantity Per Set
- 2
- Range Of Product
- ClimaSys
- Sustainable Packaging
- No
- Height Nominal
- 75 mm
- Width Nominal
- 120 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Certificate AgencyCE, UL
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2327
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Composition2 axial fan inside1 power supply inside
Materialpolyester charged with fibreglass
Offer Typespare part
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecondenser fan kit
RangeClimaSys
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful75 mm
Width Real120 mm
Package Weight(Lbs)822.000 g
Warranty (In Months)18
Customs Code8414596590
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Air Flow
- 400 m3/h
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- condenser fan kit
Range Of ProductClimaSys
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
