Schneider Electric NSYCUSP008DG Fan kit for Connected Cooling Unit, Climasys CU

MPN: NSYCUSP008DG
PPN: SCH-NSYCUSP008DG
UNSPSC: 40101604

$3123.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

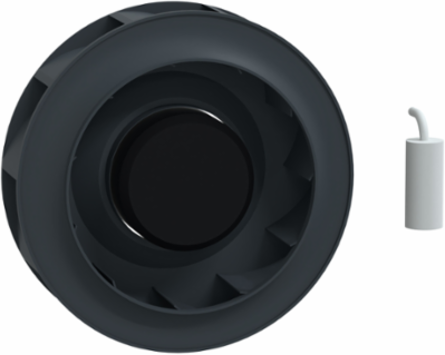

This Connected Cooling Unit Spare part is composed with 1 Centrifugal fan & 1 capacitor. Its fan power is 200W, with a nominal voltage of 230V. Its air flow is 1400m3/h. Its dimensions (HxWxD) are 120 mmx250 mmx250 mm.

Features

1 centrifugal AC fan with its capacitor
Easy replacement
Cooling Unit compatibility should be checked one by one in the Subsitution guide : UEMKTG001EN
Fan fixation by screw

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Malta
Width	9.84 in

Height	4.72 in
Depth	250 mm

Physical Attributes

Color	Black

Important Information Attributes

Device Composition	1 fan inside, 1 capacitor inside
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Material	polyamide 6 with 30 % fibre glass
Offer Type	spare part
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Name	CU
Quantity Per Set	1
Range Of Product	ClimaSys
Sustainable Packaging	No
Height Nominal	120 mm
Width Nominal	250 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Certificate Agency	CE, UL
Local Publishable Date	2025-07-10
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2327
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Fixing Mode	by screw
Mounting Location	Internal
Operational Power In W	200 W
Product Destination	fan side/top cooling unit 3200 W, Ue = 230 V
Product Or Component Type	condenser fan kit
Range	ClimaSys
Returnability	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful	120 mm
Width Real	250 mm
Customs Code	8414596560

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Air Flow	1400 m3/h
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
