Schneider Electric NSYCUSP004DG Fan kit for Connected Cooling Unit, Climasys CU
- MPN: NSYCUSP004DG
- PPN: SCH-NSYCUSP004DG
CAD
$1569.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

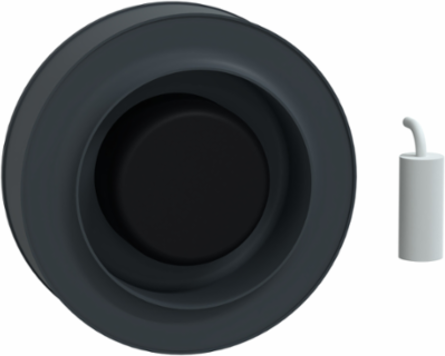

This Connected Cooling Unit Spare part is composed with 1 Centrifugal fan & 1 capacitor. Its fan power is 60W, with a nominal voltage of 230V. Its air flow is 550m3/h. Its dimensions (HxWxD) are 70 mmx190 mmx190 mm.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Malta
- Width
- 7.48 in
Height2.76 in
Depth190 mm
Physical Attributes
- Color
- Black
Important Information Attributes
- Device Composition
- 1 fan inside, 1 capacitor inside
- Certificate Agency
- CE, UL
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2327
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Fixing Mode
- by screw
- Mounting Location
- Internal
- Operational Power In W
- 60 W
- Product Name
- CU
- Quantity Per Set
- 1
- Range Of Product
- ClimaSys
- Sustainable Packaging
- No
- Height Nominal
- 70 mm
- Width Nominal
- 190 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Product Destinationfan side/top cooling unit 850 W, Ue = 230 V, side/top cooling unit 1000 W
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Materialpolyamide 6 with 30 % fibre glass
Offer Typespare part
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeevaporator fan kit
RangeClimaSys
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful70 mm
Width Real190 mm
Package Weight(Lbs)2.200 kg
Warranty (In Months)18
Customs Code8414596560
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Air Flow
- 550 m3/h
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- evaporator fan kit
Range Of ProductClimaSys
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
