Adaptaflex AL42/M40/CS90/BL Conduit Fitting with Metric Threads
- MPN: AL42/M40/CS90/BL
- UPC: 786210280882
- PPN: T-B-AL42/M40/CS90/BL
CAD
$183.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

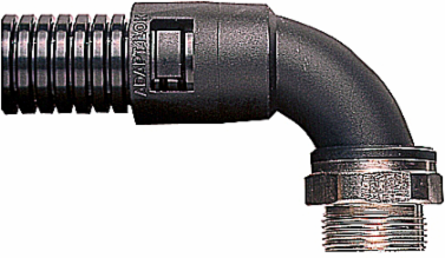

90 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 42mm, M40 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread, Black
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP66 |
| Revolving thread | Y |
| Type of connection | Snap connection |
| Thread connection size | M40 x 1.5 |
| Material | Polyamide |
| Approved in combination with protective conduit UR | Y |
| Nominal diameter | 42mm |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread type | Metric |
| Thread length | 18mm |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 90 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with Metric Threads |
| Size | NC 42mm |
| Color | Black |
| Cable Entry | M40 Thread |
Packaging
| Outer Quantity | 2 |
|---|---|
| Weight Uom | 0.43 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
