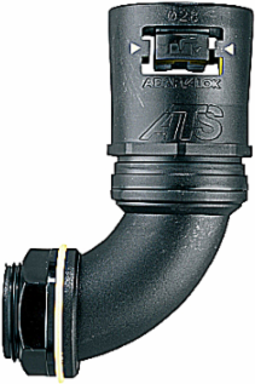

Adaptaflex AT42/125/C90/GRY Conduit Fitting with NPT Threads
- MPN: AT42/125/C90/GRY
- UPC: 786210283647
- PPN: T-B-AT42/125/C90/GRY
CAD
$62.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adaptalok ATS, 90 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 42mm, 1-1/4 Inch NPT Thread, Polyamide (Nylon) 66/TPE, Grey with Yellow Elastomer
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Material | Polyamide |
| Colour | Grey |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
| Nominal diameter | 42mm |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread type | NPT |
| Thread length | 16mm |
| Material sealing | TPE |
| Approved in combination with protective conduit UR | N |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 90 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with NPT Threads |
| Size | NC 42mm |
| Color | Gray/Yellow Elastomer |
| Cable Entry | 1-1/4 Inch NPT Thread |
Packaging
| Outer Quantity | 2 |
|---|---|
| Weight Uom | 0.21 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
