Adaptaflex ASC42/M40/C90/BL Conduit Fitting with Metric Threads
- MPN: ASC42/M40/C90/BL
- UPC: 786210281490
- PPN: T-B-ASC42/M40/C90/BL
CAD
$79.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

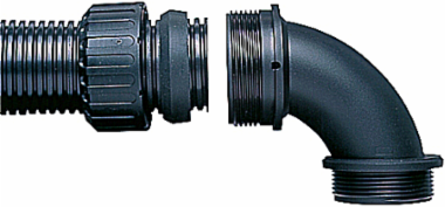

Adaptaseal 90 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 42mm, M40 Thread, Polyamide (Nylon) 66, Black
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 90 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 42mm
ColorBlack
Cable EntryM40 Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Thread
- Thread connection size
- M40 x 1.5
- Material
- Polyamide
- Approved in combination with protective conduit UR
- N
Nominal diameter42mm
Model90°-elbow
Construction typeExternal thread
Thread typeMetric
Thread length16mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
Packaging
- Outer Quantity
- 2
- Weight Uom
- 0.2 lbs. Each
Outer Dimensions (inches)1x1x1
