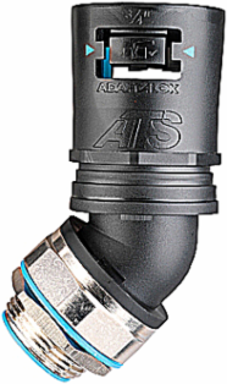

Adaptaflex AT54/150/S45/GRB Conduit Fitting with NPT Threads

MPN: AT54/150/S45/GRB
UPC: 786210283920
PPN: T-B-AT54/150/S45/GRB

$110.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Adaptalok ATS, 45 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 54mm, 1-1/2 Inch NPT Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Grey with Blue Elastomer

Specifications

European Specifications (ETIM)

ETIM	EC001176 Screw connection for corrugated plastic hose
Degree of protection (IP)	IP68
Revolving thread	Y
Type of connection	Snap connection
Thread connection size	Other
Total height	129.3mm
Material sealing	TPE
Approved in combination with protective conduit UR	N

Nominal diameter	54mm
Model	45°-elbow
Construction type	External thread
Thread type	NPT
Thread length	24.3mm
Material	Polyamide
Colour	Grey
Approved in combination with protective conduit DIN EN 61386-23	Y

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	For Insertion into Threaded Entries or Knockout to Connect Conduit
Material	Polyamide/Nylon 6.6
Connection	45 Degree
