Adaptaflex AT54/200/S45/BLY Conduit Fitting with NPT Threads
- MPN: AT54/200/S45/BLY
- UPC: 786210284088
- PPN: T-B-AT54/200/S45/BLY
CAD
$252.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

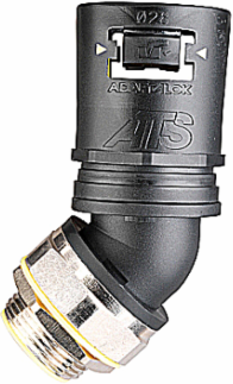

Adaptalok ATS, 45 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 54mm, 2 Inch NPT Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Yellow Elastomer
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 45 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with NPT Threads
SizeNC 54mm
ColorBlack/Yellow Elastomer
Cable Entry2 Inch NPT Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- Other
- Total height
- 132.3mm
- Material sealing
- TPE
- Approved in combination with protective conduit UR
- N
Nominal diameter54mm
Model45°-elbow
Construction typeExternal thread
Thread typeNPT
Thread length24.3mm
MaterialPolyamide
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 14x14x6
Outer Quantity20
Weight Uom1.01 lbs. Each
