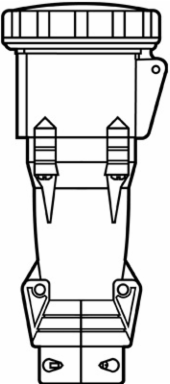

Pass & Seymour PS460C7W Watertight Pin & Sleeve Connector 60A 3 480V, 4.5 Inch Width
- MPN: PS460C7W
- UPC: 785007460452
- PPN: P-S-PS460C7W
- UNSPSC: 39121421
CAD
$824.54
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Three pole, Four wire, Pin and Sleeve connector. 60 amp, 3/480 volt.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Length | 10.9 in |
| Color | Gray |
| Amperage | 60.0 A |
| Number of Poles | 3-Way |
| Special Features | Pin & Sleeve devices, Nylon construction for high impact, combination head screws, rating compliance visible |
| Voltage | 480.0 V |
| Height | 4.7 in |
|---|---|
| Width | 4.5 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Standard | UL Listed |
| Number of Wires | 4.0 |
| Wire Size | 2 AWG |
