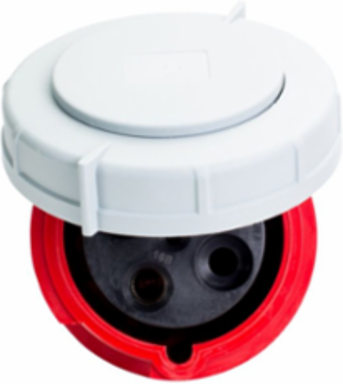

Eaton AH4100C7W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 3Ø 480 V, Amperage Rating: 100A, Allowable Wire Size: #4 -1/0 AWG, #12 - #16 AWG (pilot), Number Of Wires: Grounding 4 Four-wire
- MPN: AH4100C7W
- UPC: 040893620510
- PPN: COW-AH4100C7W
CAD
$565.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.97-1.94in (2.46-5.00cm), Female, 20 HP, 3PH
Features
- IP69K Rated
Specifications
Key Specifications
- Length
- 13.375 in
- Width
- 5.5 in
- Product Type
- Pin and Sleeve connector
- Amperage Rating
- 100A
- Contact Material
- Nickel plated brass
- Device Grade
- Extra Heavy-Duty
- Number Of Wires
- Grounding 4 Four-wire
- Cord Diameter
- 0.97-1.94in (2.46-5.00cm)
- Gender
- Female
- Allowable Wire Size
- #4 -1/0 AWG, #12 - #16 AWG (pilot)
- Design Type
- Pin and sleeve connector
- Product Series
- Arrow Hart Pin And Sleeve Iec 60309 Devices
Height5.625 in
Weight3.48 lbs
TypeConnector
Voltage Rating3Ø 480 V
ApplicationIndustrial, food and beverage, wastewater treatment
Wiring MethodBack wire
Number Of PolesThree-pole
PhaseThree-phase
Horsepower20 hp
Torque Rating70 lbf-inch
Face/Body MaterialNylon
