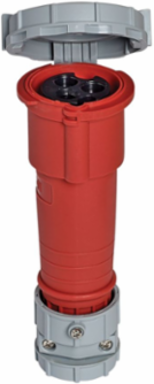

Eaton AH320C7W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 480 V, Amperage Rating: 20A, Allowable Wire Size: #12 - #10 AWG, Number Of Wires: Grounding 3 Three-wire
- MPN: AH320C7W
- UPC: 032664732621
- PPN: COW-AH320C7W
CAD
$113.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, Extra Heavy-Duty, 480V, Back wire, Red, Nickel plated brass, IP67, IP69K, Nylon, Two-pole, Three-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, Nylon
Features
- IP69K Rated
Specifications
Key Specifications
| Length | 8.5 in |
|---|---|
| Width | 4.375 in |
| Product Type | Pin and Sleeve connector |
| Amperage Rating | 20A |
| Contact Material | Nickel plated brass |
| Device Grade | Extra Heavy-Duty |
| Number Of Wires | Grounding 3 Three-wire |
| Cord Diameter | 0.333-0.775in (0.85-1.97cm) |
| Allowable Wire Size | #12 - #10 AWG |
| Face/Body Material | Nylon |
| Height | 4.375 in |
|---|---|
| Weight | 0.672 lbs |
| Type | Connector |
| Voltage Rating | 480 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Wiring Method | Back wire |
| Number Of Poles | Two-pole |
| Gender | Female |
| Design Type | Pin and sleeve connector |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
