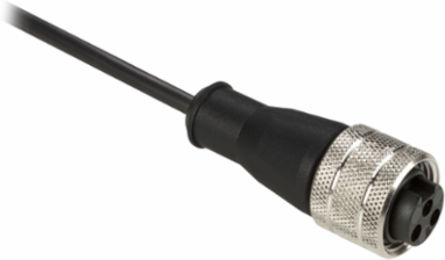

Telemecanique Sensors XZCP1865L5 Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 5 m
Telemecanique Sensors XZCP1865L5 Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 5 m
- MPN: XZCP1865L5
- PPN: TES-XZCP1865L5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$63.42/ EA
Description
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 3 wires and has a 3 pins 1/2" 20 UNF straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof and can be temporarily immersed in water (IP67). This cable has a length of 5m and a diameter of 5.2mm. It is made up of 3 wires, each section of which is 0.34 mm². Its color is black and its weight is 0.18kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35°C to +90°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 3 pins 1/2" 20 UNF male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -35-100 °C
Ambient Air Temperature For Operation-35-90 °C static || -5-90 °C flexing
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308015
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1308015EN
Complementary
- Collar Material
- metal
- Wire Insulation Material
- PUR
- Cable Length
- 5 m
- Net Weight
- 0.18 kg
- Minimum Insulating Resistance
- 1 GΩ
- [In] Rated Current
- 4 A
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector 1/2"20 UNF, 3 pins
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Status Ledwithout
Cable Outer Diameter5.2 mm
Cable Connector Fixingscrew-on
Cable Composition3 x 0.34 mm²
Specifications
- Range Of Product
- Telemecanique Cabling components
- Series Name
- general purpose
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part Typepre-wired connectors
