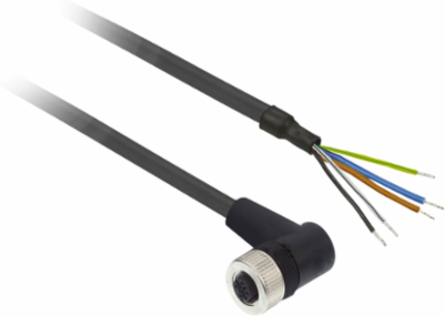

Telemecanique Sensors XZCP1264L2 Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PUR 2 m
Telemecanique Sensors XZCP1264L2 Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PUR 2 m
- MPN: XZCP1264L2
- PPN: TES-XZCP1264L2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$73.37/ EA
Description
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 5 wires and has a 5 pins M12 elbowed female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 60V/AC or 75V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 2m and a diameter of 5.9mm. It is made up of 5 wires, each section of which is 0.34 mm². Its color is black and its weight is 0.115kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-40°C to +80°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. It is compatible with XUSL2E and XUSL4E safety light curtains transmitter. It is also compatible with XCMD limit switches. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification. It is designed to be used in static condition at a temperature from -40°C to +90°C.
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP69K || IP67 || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1308015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1308015
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.9 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 4 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionelbowed female connector M12, 5 pins (included earth pin)
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Length2 m
Cable Composition5 x 0.34 mm²
Net Weight0.115 kg
Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
